Exfo OTDR AXS-115 Mini OTDR

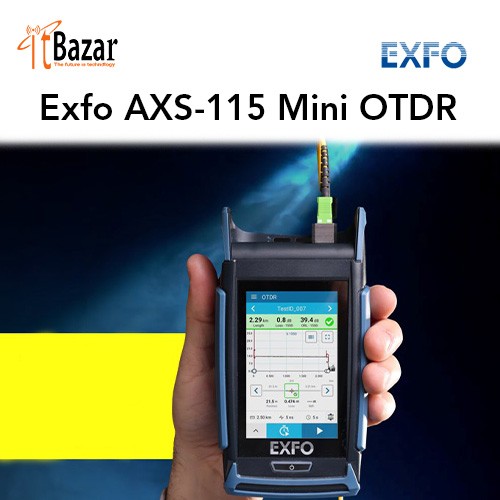

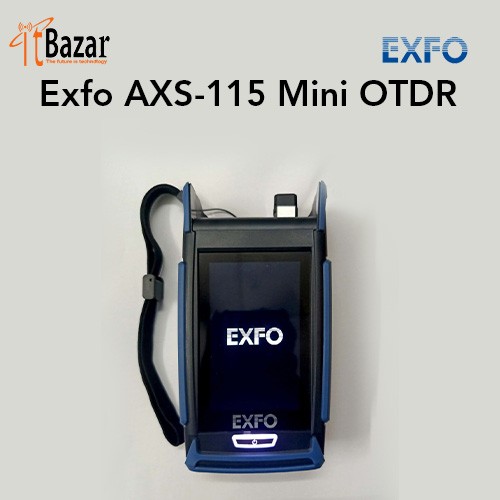

AXS-115 handheld OTDR

POINT-TO-POINT (P2P) LINKS, ACCESS

AND FTTx NETWORK INSTALLATION

AND TROUBLESHOOTING

Ultra-portable and fit-for-purpose, the AXS-115

brings the essential capabilities of a state-of-the-art

OTDR in a sleek design to the field.

Rugged and ultra-portable, featuring a 4-inch high-visibility outdoor

touchscreen

All-day battery autonomy

Dynamic range of 32/30 dB

Short dead zones: 0.8/3.5 m event dead zone (EDZ) /

attenuation dead zone (ADZ)

Onboard link map simplifying OTDR trace interpretation

Dual wavelengths with automated macrobend detection

Onboard PDF reporting

PORTRAIT AND LANDSCAPE VIEW

Landscape view available at the click of a button:

• Investigate the trace efficiently

• Manual measurements with two markers

• Zoom on elementsCHNICAL SPECIFICATIONS

Wavelength (nm) b 1310 ± 30/1550 ± 30

Dynamic range (dB) c 32/30

Event dead zone (m) d 0.8

Attenuation dead zone (m) d 3.5

Distance range (km) 0.065 to 200

Pulse width (ns) 3 to 20 000

Linearity (dB/dB) ±0.05

Loss threshold resolution (dB) 0.01

Loss resolution (dB) 0.001

Sampling resolution (m) 0.04 to 5

Sampling points Up to 256 000

Distance uncertainty (m) e ±(0.75 + 0.0025% × distance + sampling resolution)

Reflectance accuracy (dB) b ±2

SPECIFICATIONSERAL SPECIFICATIONS

Size (H × W × D) 171 mm × 93 mm × 48 mm (6 ³⁄4 in × 3 ¹¹⁄16 in × 1 7⁄8 in)

Weight (with battery) 0.5 kg (1.1 lb)

Display 4 in (101.6 mm) touchscreen, 800 × 480 TFT, portrait and landscape view

Interfaces One USB-C port

Storage 8 GB internal memory (10 000 OTDR traces, typical)

Results format PDF report on the unit

.sor trace as per Telcordia (Bellcore)

Battery Rechargeable lithium-polymer battery, USB type-C charging port connector

Battery autonomy >10 hours of operation as per Telcordia (Bellcore) TR-NWT-001138

Temperature Operating

Storage

–10 °C to 45 °C (14 °F to 113 °F)

–40 °C to 70 °C (–40 °F to 158 °F) f

Relative humidity < 93 % non-condensing

Data management FastReporter 3

Adapters Multiple changeable adapters to fit any optical connectors: SC, FC, LC, and more
