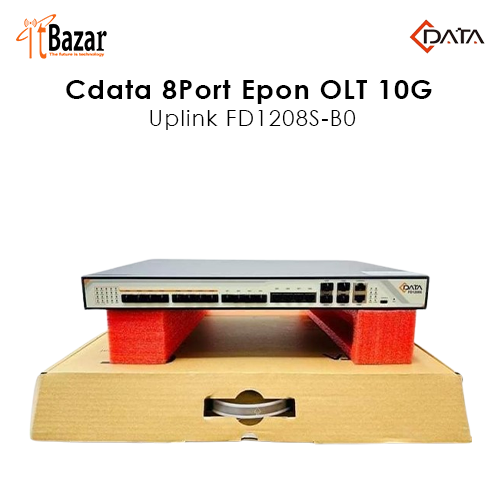

Cdata 8Port Epon OLT 10G Uplink FD1208S-B0 সি ডাটা ইপন ও এল টি

CData EPON OLT 8 PORT (with 10G uplink) FD1208S-B0-NDA0

Meet IEEE3x standard and relative EPON standards of Chinese Communication Industry

Support OAMremote management for ONT/ONU, compatible with IEEE 3x OAM Protocol

1Uheight 8PON OLT product in compact design of Pizza-Box

Layer 2 Switching Function

QOSGuarantee

Easy-to-Use Management System

Uplink Port

QTY 12

Copper 10/100/1000M auto-negotiable,RJ45:4pcs

Optical interface 4 GE

10Gb uplink interface 4*10Gb

PON Port

QTY 8

Physical Interface SFP Slots

Connector Type 1000BASE-PX20+

Max splitting ratio 1:64

USB Port

QTY 1

Connector Type Type-C

PON Port Specification

Transmission Distance 20KM

PON port speed Symmetrical 1.25Gbps

Wavelength 1490nm TX,1310nm RX

Connector SC/PC

Fiber Type 9/125μm SMF

TX Power +2.5～+7dBm

Rx Sensitivity -27dBm

Saturation Optical Power -6dBm

10Gb SFP+ Port Specification

Transmission Distance 10KM

PON port speed 8.5-10.51875Gbps

Wavelength 1310nmTX，1310nmRX

Connector LC

Fiber Type Single mode with dual fiber

TX Power -8.2~+0.5 dBm

Rx Sensitivity -12.6dBm

Power Supply

220VAC AC: 100V～240V，47/63Hz

-48DC DC:-36V～-72V

Operating Environment

Working Temperature -15～50℃

Storage Temperature -40～85℃

Relative Humidity 5～90%(non-condensing)

Others

Power Consumption 58W

Weight 4.50kg

Size 440mm(L)*298mm(W)*44mm(H)

Management Ports 1 100/1000 BASE-Tx out-band Ethernet port

1 CONSOLE local management port

Management Mode SNMP, Telnet, CLI management mode.

Management Function Fan Group Detecting

Port Status monitoring and configuration management;

Layer-2 switch configuration such as Vlan, Trunk ,RSTP,IGMP ,QOS, etc;

EPON management function: DBA ,ONU authorization, ACL ,QOS ,etc;

Online ONU configuration and management

User management

Alarm management

Layer-two Switch Support port VLan and protocol Vlan

Support Vlan tag/Untag ,vlan transparent transmission;

Support 4096 VLAN

Support 802.3dd trunk

RSTP

QOS based on port ,VID,TOS and MAC address

IGMP Snooping

802.x flow control

Port stability statistic and monitoring

EPON Function Support port-based rate limitation and bandwidth control;

In compliant with IEEE802.3ah Standard

Up to 20KM transmission Distance

Support data encryption, group broadcasting, port Vlan separation, RSTP, etc.

Support Dynamic Bandwidth Allocation (DBA)

Support ONU auto-discovery/Link detection/remote upgrade of software;

Support VLAN division and user separation to avoid broadcast storm;

Support various LLID configuration and single LLID configuration .Different user and different service could provide different QoS by means of different LLID channels.

Support power-off alarm function ,easy for link problem detection

Support broadcasting storm resistance function

Support port isolation between different ports

Support ACL and SNMP to configure data packet filter flexibly

Specialized design for system breakdown prevention to maintain stable system

Support dynamic distance calculation on EMS online

Support RSTP,IGMP Proxy

Layer-three Route Support static routing protocol

Support dynamic RIP protocol

Support dhcp-relay function

Support vlanif interface configuration
