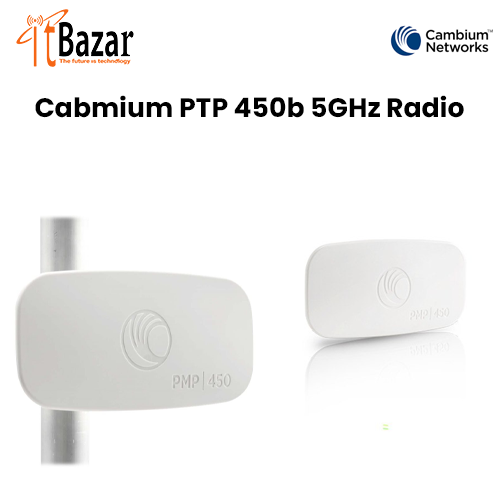

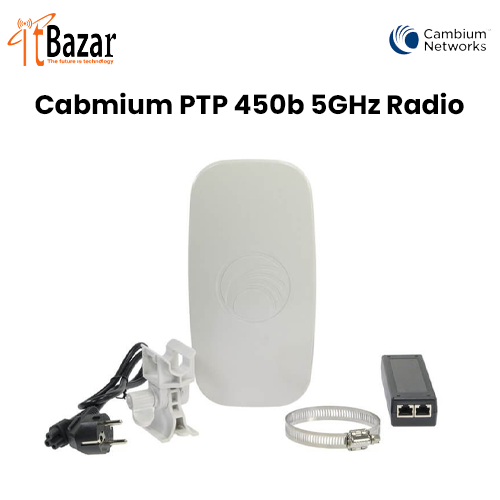

Cambium PMP 450b Radio
Inhouse product
Cambium PMP 450b Radio
Subscriber Module
Cambium Networks PMP 450 platform increases
performance with the addition of the PMP 450b
Subscriber Module.
KEY FEATURES:
• Ultra-wide band radios support the entire band, from 4.9 to 5.925 GHz.
• Gigabit Ethernet Interface provides the maximum transfer rates to the device.
• 3.5 mm audio jack allows direct connection of headphones without any adapters.
• New System on a Chip (SoC) enhances Packet Processing Power more than 4x that of the 450 SM.
• Capable of up to 300 Mbps aggregate in a 40 MHz channel.
SPECIFICATIONS
PRODUCT MID-GAIN (17 dBi) HIGH GAIN (24 dBi)
Model Numbers C050045C011A C050045H012A (4-pack)
SPECTRUM
Channel Spacing Configurable on 2.5 MHz increments
Frequency Range 4900 - 5925 MHz
Channel Width 5 MHz, 10 MHz, 15 MHz, 20 MHz, 30 MHz, or 40 MHz
INTERFACE
MAC (Media Access Control) Layer Cambium Networks proprietary
Physical Layer 2x2 MIMO OFDM
Ethernet Interface 100/1000BaseT, full duplex, rate auto negotiated, 802.3 compliant
Protocols Used IPv4, UDP, TCP, IP, ICMP, Telnet, SNMP, HTTP, FTP
Network Management HTTP, HTTPS, Telnet, FTP, SNMP v2 and v3
MTU 1700 bytes
SECURITY
Encryption 56-bit DES, FIPS-197 128-bit AES
VLAN 802.1ad (DVLAN Q-inQ), 802.1Q with 802.1p priority,
