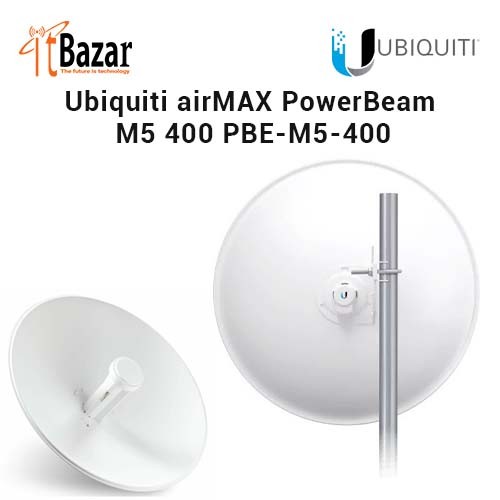

Ubiquiti airMAX PowerBeam M5 PBE-M5-400 M5 5GHz 25dBi Radio Link

The Ubiquiti airMAX PowerBeam M5 PBE-M5-400 supports up to 150+ Mbps real TCP/IP throughput. Its Antenna Feed has a thin gray ring around the center of the cap to differentiate it from the PBE-M5-300 Antenna Feed.

.With an all-in-one design, the Ubiquiti airMAX PowerBeam M5 PBE-M5-400 is meant to function as a Wireless outdoor CPE radio. With a more concentrated, direct signal clients benefit from improved noise immunity to as this bridge is capable of filtering out much of the noise that can degrade the signal. With Ubiquiti’s own inner feed design installation of the PBE-M5-400 has been greatly simplified as there is no longer a need for any cabling. Once installed the included airMAX technology helps network administrators to manage and monitor the network. From intelligent QoS to scalability Ubiquiti has provided the tools necessary to create long range networks offering reliable wireless network access to a large number of clients.

airMAX PowerBeam M5 400

Mechanical

Dimensions 420 x 420 x 275 mm (16.54 x 16.54 x 10.83″)

Weight 1.75 kg (4.8 lb)

Enclosure material UV-stabilized plastic

Mounting Pole mount kit (Included)

Wind survivability 200 km/h (125 mph)

Wind loading 342.5 N @ 200 km/h (77 lbf @ 125 mph)

Hardware

Networking interface (1) GbE RJ45 port

Power method Passive PoE (Pairs 4, 5+; 7, 8 Return)

Power supply 24V, 0.5A Gigabit PoE adapter (Included)

Max. power consumption 8W

Max. TX power 26 dBm

Gain 25 dBi

ESD/EMP protection Air/contact: ± 24 kV

LEDs (1) Power, (1) LAN, (4) WLAN

Signal Strength LEDs Software-adjustable to correspond to custom RSSI levels

RoHS compliance Yes

Salt fog test IEC 68-2-11 (ASTM B117)

Equivalent: MIL-STD-810 G method 509.5

Vibration test IEC 68-2-6

Temperature shock test IEC 68-2-14

UV test IEC 68-2-5 at 40° C (104° F)

Equivalent: ETS 300 019-1-4

Wind-driven rain test ETS 300 019-1-4

Equivalent: MIL-STD-810 G method 506.5

Operating temperature -40 to 70° C (-40 to 158° F)

Operating humidity 5 to 95% noncondensing

Certifications CE, FCC, IC

System

Gain 22 dBi

Channel sizes 5/8/10/20/30/40 MHz

Polarization Dual linear
