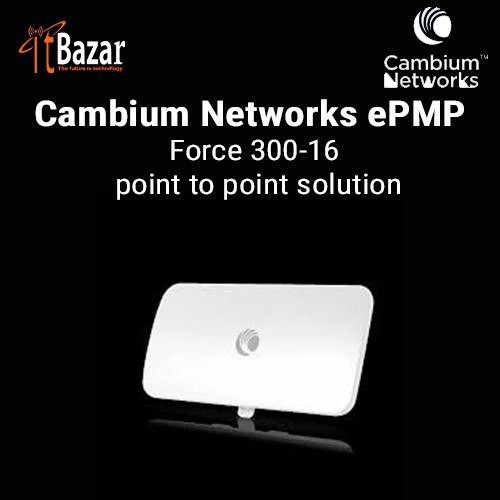

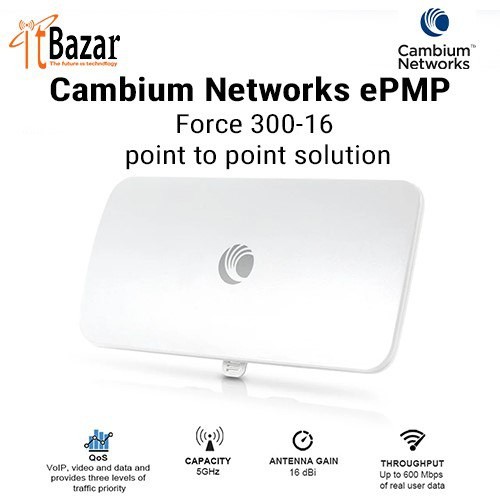

Cambium ePMP Force 300-16
Force 300-16 continues the tradition of previous products with a horizontal orientation mount providing a 15 degree beamwidth and 16 dBi gain.
The F300-16 offers a compelling, compact subscriber or point to point solution resilient to interference. Supporting peak throughput greater than 500 Mbps, the Force 300-16 also supports an always on spectrum analyzer.
Spectrum*
Available Models Force 300-16, Force 300-19, Force 300-19R, Force 300-25, Force 300 CSM
Channel Width MHz 20 | 40 | 80
300-19R: 5 | 10 | 20 | 40 | 80
Proprietary Physical
Layer
Air Interface on top of 802.11ac Wave 2 technology (2x2 MIMO/OFDM)
Channel Spacing Configurable in 5 MHz increments
Frequency Range Wide band operation 4910–6080 MHz (Note: Allowable frequencies and bands are dictated by individual country
regulations.)
MAC Layer (Media
Access Control)
Cambium proprietary
Ethernet Interfaced 10/100/1000 BaseT, compatible with Cambium PoE & standard PoE pinouts
Protocols Used IPv4/IPv6 (Dual Stack), UDP, TCP, ICMP, SNMPv2c, NTP, STP, IGMP, SSH
Network
Management
IPv4/IPv6, HTTPs, SNMPv2c, SSH, Cambium Networks cnMaestro
VLAN 802.1Q with 802.1p priority
