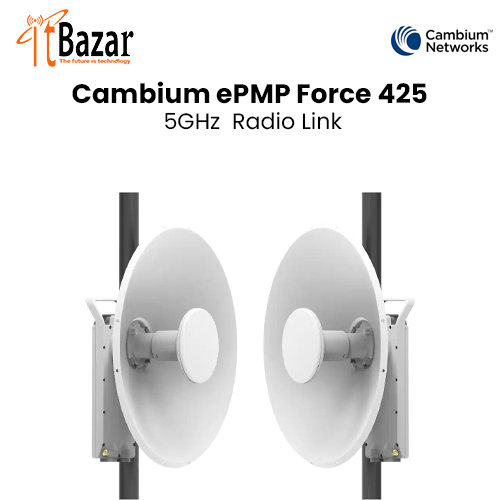

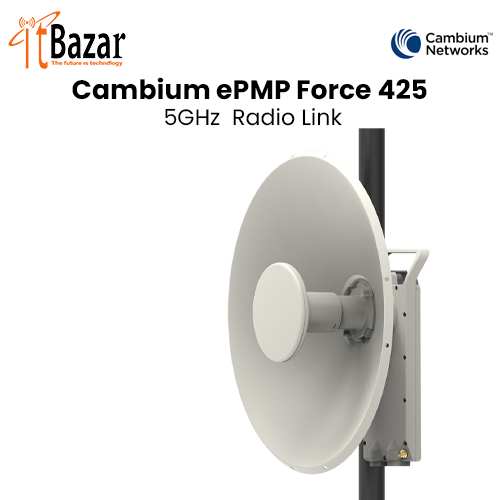

Cambium ePMP Force 425 integrated 25 dBi dish
Inhouse product
Cambium ePMP Force 425 integrated 25 dBi dish
Cambium Networks introduces the ePMP Force 425 point to point solution delivering up to 1 Gbps throughput at a breakthrough price point based on the latest 802.11ax standards.
Spectrum (Force 400C/Force 425)
Channel Width MHz 20 | 40 | 80
Proprietary Physical
Layer
802.11ax, 2x2 MIMO/OFDM
Channel Spacing Configurable in 5 MHz increments
Frequency Range Wide-band operation 4910–6135 MHz (Note: Country-dependent based on local regulations. Support of 5870 to
6135 MHz coming in a future software upgrade.)
MAC Layer
(Media Access
Control)
Cambium Proprietary
Ethernet Interface 100/1000 BaseT, compatible with Cambium PoE & Standard PoE pinouts; 10 Gigabit SFP cage for optional SFP
modules
Protocols Used IPv4/IPv6 (dual management stack), UDP, TCP, ICMP, SNMPv2c, NTP, STP, IGMP, SSH
Network
Management
IPv4/IPv6, HTTPs, SNMPv2c, SSH, Cambium Networks’ cnMaestro
VLAN 802.1Q with 802.1p priority
Physical:
Force 400C Force 425
Connectors 1 x RJ-45, 1 x SFP, 2 x RP-SMA 1 x RJ-45, 1 x SFP
Surge Suppression* 1 joule integrated 1 Joule Integrated
Environmental IP67 including metal housing IP67 including metal housing
Temperature -30°C to 55°C (-22°F to 131°F) -30°C to 55°C (-22°F to 131°F)
Weight 1.3 kg (2.9 lb) 4.8 kg (10.6 lbs.)
Wind Survival 180 km/h (112 mph) 180 km/hour (112 mph)
Dimensions
(H x W x D)
256 mm x 125 mm x 46 mm
(10.1 in x 4.9 in x 1.8 in)
470 mm diameter x 285 mm depth (18.5 in diameter x
11.2 in depth)
Pole Diameter
Range**
Center: 3.1 cm to 7.6 cm (1.25 in to 3.0 in) Center: 3.1 cm to 7.6 cm (1.25 in to 3.0 in)
Power
Consumption
28W 28W
Input Voltage 802.3at or passive PoE 44-59 V 802.3at or passive PoE 44-59 V
Included Power
Supply
100-230VAC ,56V, 30W, PoE adaptor 100-230VAC ,56V, 30W, PoE adaptor
