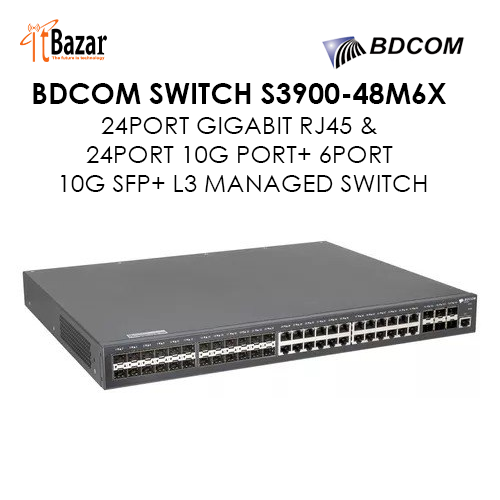

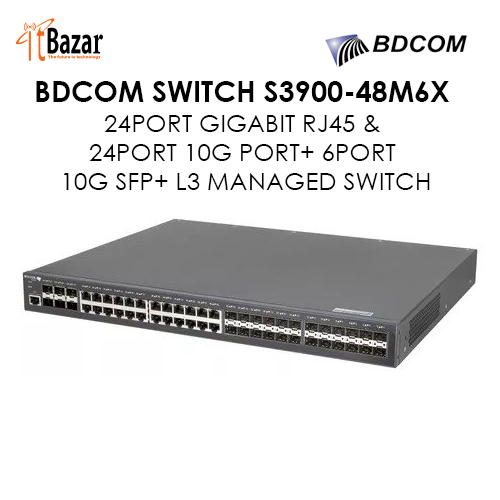

BDCOM SWITCH S3900-48M6X 24PORT GIGABIT RJ45 & 24PORT 10G PORT+ 6PORT 10G SFP+ L3 MANAGED SWITCH

Managed Layer 3 Switch BDCOM S3900-48M6X, 24x 10/100/1000Base-T, 24x 100/1000Base-X SFP, 6x 1/10GE SFP+, Hot Swap PSU 1+1, 1x PSU ~220VAC included

BDCOM S3900-48M6X is a managed Layer 3 switch equipped with 24 10/100/1000Base-T RJ45 ports, 24 100/1000Base-X SFP ports and 6 1/10G SFP+ ports. The switch is designed for use at the aggregation and core levels in telecom operator networks and corporate networks. The S3900-48M6X model is equipped with two slots for installing AC or DC power supplies (Hot Swap, 1+1 redundancy, 1x PSU ~220VAC included).

BDCOM S3900 Series is a new generation of aggregation 10G switches introduced by Shanghai Baud Data Communication Co., LTD. It is targeted at the IP MAN (metropolitan area network), campus networks and enterprise networks. It is developed on the basis of high performance hardware and BDROS - a software platform with BDCOM own independent intellectual property rights. It supports multiple services like IPv6, MPLS, VPN and network security based on L2/L3/L4 wire-speed switching service. It also supports nonstop upgrade, continuous forwarding, graceful restarting and redundancy protection.

Switch type

Switch type L3 controlled

Interfaces

Type of main ports Gigabit Ethernet SFP

10/100/1000BaseT interfaces 24

1000BaseX SFP Interfaces 24

10GBase-X SFP+ interfaces 6

Console port RJ45

Number of main ports 48

Uplink ports type 10GigabitEthernet SFP+

Nutrition

Supply voltage 48V DC; ~220V AC

Power supplies Hot Swap modular power supplies, 1+1 redundancy, 1x PSU ~220VAC included

Hot Swap Power Supplies Yes

L2 functionality

Stacking support Yes

Number of VLANs 4094

MAC address table size 32768

Number of ACL rules 2303

L2 redundancy protocols ERPS; MSTP; RSTP; STP

Port aggregation LACP 802.3ad, static, max 128 groups

Multicast IGMP v1/v2/v3 Snooping, MVR, Fast-leave, Multicast Filter

QoS 8 queues, SP, WRR, SP+WRR

Number of multicast groups 2048

L3 functionality

Routing table size 12000

ARP table size 8000

Routing protocols RIP; OSPF; BGP; PIM
