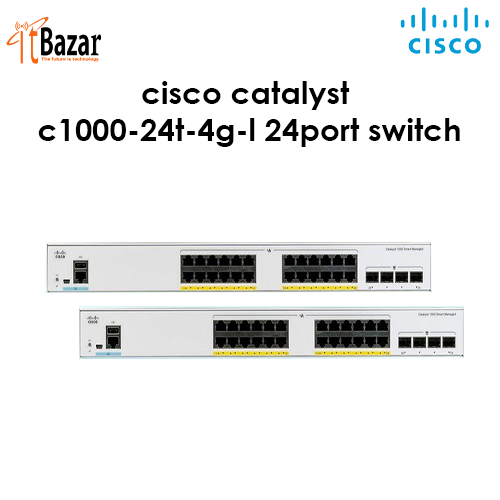

cisco catalyst c1000-24t-4g-l 24port switch

Product overview

Cisco® Catalyst® 1000 Series Switches are fixed managed Gigabit Ethernet and Fast Ethernet enterprise-class Layer 2 switches designed for small businesses and branch offices. These are simple, flexible and secure switches ideal for out-of-the-wiring-closet and critical Internet of Things (IoT) deployments. Cisco® Catalyst® 1000 operate on Cisco IOS® Software and support simple device management and network management via a Command-Line Interface (CLI) as well as an on-box web UI. These switches deliver enhanced network security, network reliability, and operational efficiency for small organizations.

Product highlights

Cisco Catalyst 1000 Series Switches feature:

8, 16, 24, or 48 Gigabit Ethernet and 24, 48 port Fast Ethernet data or PoE+ ports with line-rate forwarding

2 or 4 fixed 1 Gigabit Ethernet Small Form-Factor Pluggable (SFP)/RJ 45 Combo uplinks (8 Port models only) or 4 fixed 10 Gigabit Ethernet Enhanced SFP (SFP+) uplinks on the Gigabit Ethernet models and 4 fixed 1 Gigabit Ethernet Small Form-Factor Pluggable (SFP) and 2 RJ 45 Combo uplinks on the Fast Ethernet models

Perpetual PoE+ support with a power budget of up to 740W

CLI and/or intuitive web UI manageability options

Network monitoring through sampled flow (sFlow)

Security with 802.1X support for connected devices, Switched Port Analyzer (SPAN), and Bridge Protocol Data Unit (BPDU) Guard

Compact fanless models available with a depth of less than 13 inches (33 cm)

Device management support with over-the-air access via Bluetooth, Simple Network Management Protocol (SNMP), RJ-45, or USB console acces

Reliability with a higher Mean Time Between Failures (MTBF) and an Enhanced Limited Lifetime Warranty support (E-LLW)

Configurations

Gigabit Ethernet / FE ports : 24 10/100/1000 RJ45 Data

Uplink interfaces : 4 SFP

PoE+power budget : -

Fanless : Y

Dimensions (WxDxH in inches) : 17.48 x 9.45 x 1.73

Weight (kg) : 2.63

Specifications

Console ports

RJ-45 Ethernet : 1

USB mini-B : 1

USB-A port for storage and Bluetooth console : 1

Memory and processor

CPU : ARM v7 800 MHz

DRAM : 512 MB

Flash memory : 256 MB

Performance

Forwarding bandwidth :

FE: 6.4 Gbps

1G: 28 Gbps

10G: 64 Gbps

Switching bandwidth :

FE: 12.8 Gbps

1G: 56 Gbps

10G: 128 Gbps

Forwarding rate (64?byte L3 packets) :

FE: 9.52 Mpps

1G: 41.67 Mpps

10G: 95.23 Mpps

MAC addresses : 16000

IPv4 unicast direct routes : 542

IPv4 unicast indirect routes : 256

IPv6 unicast direct routes : 414

IPv6 unicast indirect routes : 128

IPv4 multicast routes and IGMP groups : 1024

IPv6 multicast groups : 1024

IPv4/MAC security ACEs : 600 (FE: 384)

IPv6 security ACEs : 600 (FE: 256)

Maximum active VLANs : 256

VLAN IDs available : 4094

Maximum STP instances : 64

Maximum SPAN sessions : 4

MTU-L3 packet : 9198 bytes

Jumbo Ethernet frame : 10,240 bytes

Dying Gasp : Yes (FE: No)

MTBF in hours (data) : 2,026,793

MTBF in hours (PoE) : 698,220

MTBF in hours (Full PoE) : 698,220
