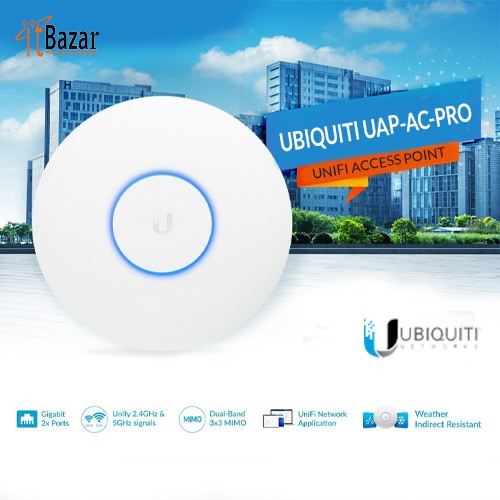

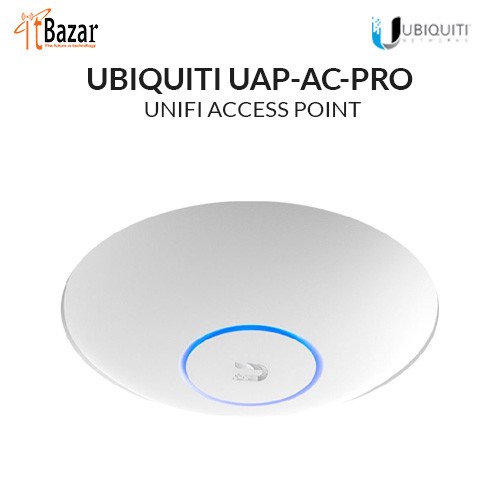

Ubiquiti UniFi UAP-AC-PRO Access Point

The Ubiquiti UniFi UAP-AC-PRO is one of the most popular wireless access points coming from the US-based manufacturer and one of the most widely preferred by the general public because the UniFi series has managed to negate the need to purchase expensive networking equipment to have a reliable business network, by porting enterprise-type features to a small and unobtrusive device, all that at an acceptable price. Sure enough, Ubiquiti has been a go-to option for lots of small business owners, but it has also crept into the consumer market by offering a very compelling alternative to the regular consumer-type routers (yes, even the high-end ones), as well as an alternative to the new

Mechanical

Dimensions Ø196.7 x 35 mm (Ø7.7 x 1.4")

Weight Without mount: 350 g (12.4 oz)

With mount: 450 g (15.9 oz)

Hardware

Networking interface (2) GbE RJ45 ports

Management interface Ethernet

Power method PoE

Passive PoE, 48V

Power supply UniFi PoE switch

48V, 0.5A PoE adapter (Included)*

*5-packs do not come with PoE adapters.

Supported voltage range 44—57V DC

Max. power consumption 9W

Max. TX power

2.4 GHz

5 GHz

6 GHz

22 dBm

22 dBm

–

MIMO

2.4 GHz

5 GHz

6 GHz

3 x 3 (DL MU-MIMO)

3 x 3 (DL MU-MIMO)

–

Max. data rate

2.4 GHz

5 GHz

6 GHz

450 Mbps (BW40)

1.3 Gbps (BW80)

–

Antenna gain

2.4 GHz

5 GHz

6 GHz

3 dBi

3 dBi

–

Button Factory reset

Mounting Wall, ceiling (Included)

Ambient operating temperature -10 to 70° C (14 to 158° F)

Ambient operating humidity 5 to 95% noncondensing

Certifications CE, FCC, IC

Software

WiFi standards 802.11 a/b/g/n/ac

Wireless security WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)

BSSID 4 per radio

VLAN 802.1Q

Advanced QoS Per-user rate limiting

Guest traffic isolation Supported

Power save Supported

WMM Voice, video, best effort, and background

Concurrent clients 250+

Supported Data Rates (Mbps)

802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11b 1, 2, 5.5, 11 Mbps

802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11n 6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40)

802.11ac 6.5 Mbps to 1.3 Gbps (MCS0 - MCS9 NSS1/2/3, VHT 20/40/80)
