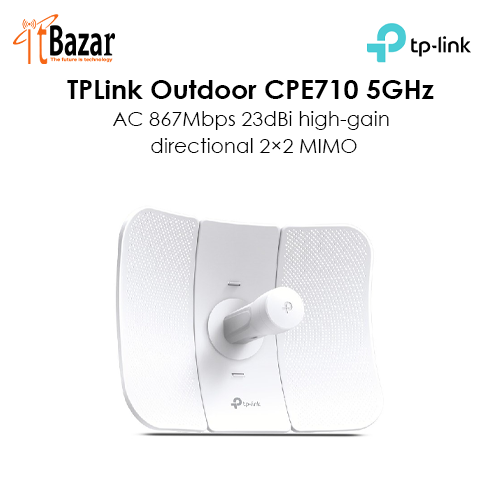

TPLink Outdoor CPE710 5GHz AC 867Mbps 23dBi high-gain directional 2×2 MIMO

5GHz AC 867Mbps 23dBi Outdoor CPE

802.11ac for up to 867Mbps on 5GHz wireless data rate

23dBi high-gain directional 2×2 MIMO, ideal for long-distance application

Excellent beam directivity, improved latency and noise cancellation

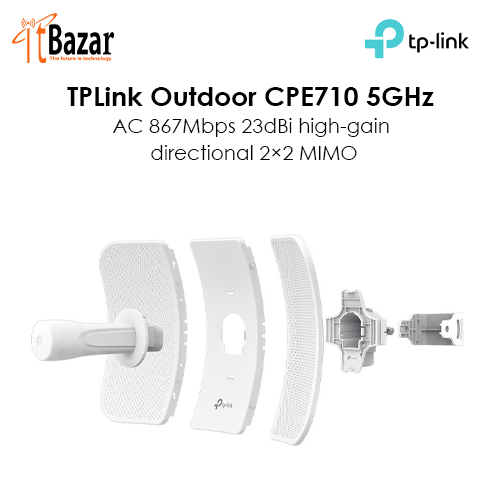

Innovative snap-lock parts make for fast assembly and a sturdy structural design keeps CPE710 stable even in strong winds

Durable IP65 weatherproof enclosure along with 15kV ESD and 6kV lightning protection ensures all-weather suitability

Pharos Control gives administrators a free, centralized management system

Passive PoE supports to allow flexible deployment and convenient installation

HARDWARE FEATURES

Processor Qualcomm 750MHz CPU, MIPS 74Kc

Memory 128 MB DDR2 RAM, 16 MB Flash

Interface 1 10/100/1000 Mbps Shielded Ethernet Port (LAN/POE)

1 Reset Button

Power Supply Passive Power over Ethernet via LAN (+4,5pins; -7,8pins)

Voltage range: 16-27V DC

Dimensions ( W x D x H ) 14.4 x 11.0 x 8.1 in.

(366 x 280 x 207 mm)

Antenna Gain 23 dBi

Antenna Beamwidth 9° (Azimuth)/7° (Elevation)

Protection 15 KV ESD Protection

6 KV Lightning Protection

Enclosure Material: Outdoor PC stabilized plastic

Weatherproof: IP65 water and dust proof design

WIRELESS FEATURES

Wireless Standards IEEE 802.11a/n/ac

Wireless Speeds Up to 867 Mbps (80 MHz, Dynamic)

Up to 400 Mbps (40 MHz, Dynamic)

Up to 173.4 Mbps (20 MHz, Dynamic)

Frequency 5.15–5.85 GHz

Note: Available operating frequency may vary depending on the limitations of the countries or regions in which the device is used.

Transmit Power Max. 27 dBm (Adjustable power by 1dBm)

SOFTWARE FEATURES

Network Configuration WAN: Static/ Dynamic/ PPPoE

LAN: Static/ Dynamic/ DHCP

Forwarding: ALG/ UPnP/ Virtual Server/ Port Trigger

Security: SPI Firewall/ Ping Forbidden/ DoS Protection

Access Control

Static Routing

Bandwidth Control

IP & MAC Binding

Wireless Configurations Selectable channel width: 20, 40 or 80MHz

Automatic Wi-Fi channel selection

RF transmit power adjustment in 1 dB step

Dynamic Frequency Selection (DFS)

WDS Enable/ Disable

Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) encryption,

SSID broadcast enable/ disable

Multi-SSID with VLAN tagging in AP mode

Distance/ ACK timeout setting

Wireless MAC address filter

Wireless advanced features:

Beacon interval, RTS threshold, fragmentation threshold, DTIM interval, AP isolation, short GI, Wi-Fi multimedia

Long range point-to-point

Management Discovery and Remote Management with Pharos Control (Windows)

HTTP/ HTTPS Web-based management

System log

SNMP agent (v2c)

Ping watchdog

Dynamic DNS

SSH server

System Tools Indicators:Signal Strength, Noise, Transmit CCQ, CPU, and Memory usage

Monitors: Throughput, Stations, Interfaces, ARP, Routes, WAN, and DHCP

Spectrum Analyzer

Speed Test

Ping

Traceroute

Antenna Alignment

System-level Optimizations Optimized IGMP Snooping / Proxy for multicast applications

POE ADAPTER FEATURES

Dimensions(W x D x H) 3.3 x 1.7 x 1.2 in.

(85 × 44 × 30 mm)

Interfaces 1 AC Jack with Earth Ground

1× 10/100/1000 Mbps Shielded Ethernet Port (Power + Data)

1× 10/100/1000 Mbps Shielded Ethernet Port (Data)

Button Remote Reset Button

Power Status LEDs Green

Input 100-240VAC, 50/60Hz

Output 24VDC, 0.5A Max

+4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet)

Efficiency > 84.29%

Certifications CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark

OTHERS

Certification CE, FCC, RoHS, IP65

Package Contents Outdoor Wireless CPE

24V 0.5A Passive PoE Adapter

Pole Mounting Kits

AC Power Cord

Installation Guide

Environment Operating Temperature: -40℃~70℃ (-40℉~158℉)

Storage Temperature: -40℃~70℃ (-40℉~158℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~95% non-condensing
