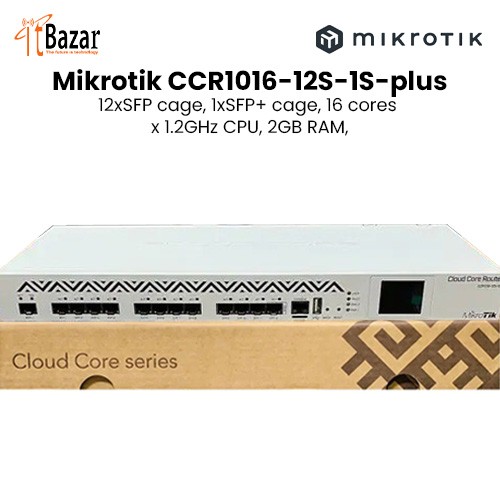

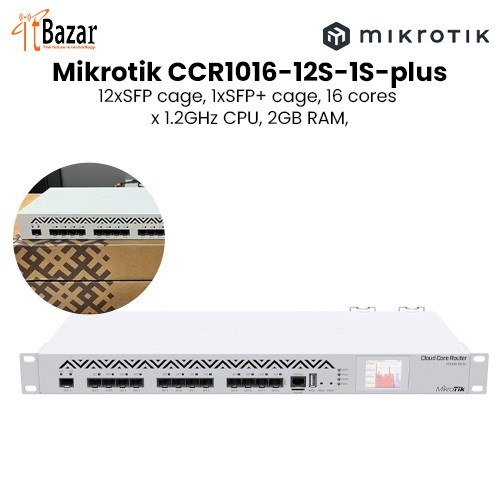

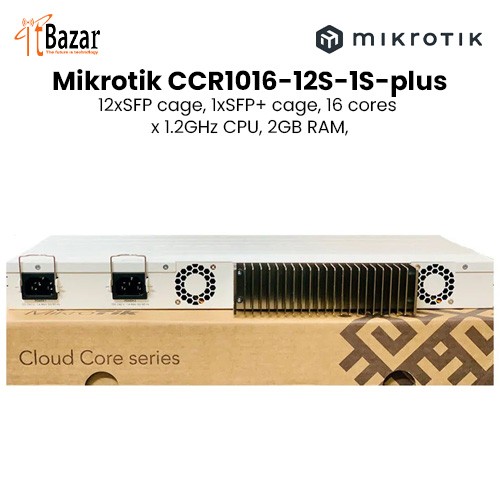

Mikrotik CCR1016-12S-1S+
Inhouse product
Mikrotik CCR1016-12S-1S+
1U rackmount, 12xSFP cage, 1xSFP+ cage, 16 cores x 1.2GHz CPU, 2GB RAM, LCD panel, Dual Power supplies, RouterOS L6
CCR1016 is an industrial grade router with a cutting edge 16 core Tilera CPU. If you need many millions of packets per second - Cloud Core Router is your best choice.
This model has twelve SFP ports and one SFP+ port for 10G connectivity. It is available in a 1U rackmount case and also has a serial console port, a touchscreen LCD and a USB port.
The CCR1016-12S-1S+ comes with redundant power supplies and one RJ45 SFP 10/100/1000M copper module.
Specifications
Details
Product code CCR1016-12S-1S+
Architecture TILE
CPU TLR4-01680
CPU core count 16
CPU nominal frequency 1.2 GHz
Dimensions 443 x 197 x 44 mm
RouterOS license 6
Operating System RouterOS
Size of RAM 2 GB
Storage size 128 MB
Storage type NAND
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -20°C to 60°C
IPsec hardware acceleration Yes
Suggested price $815.00
Powering
Details
Number of AC inputs 2
AC input range 100-240
Max power consumption 47.5 W
Max power consumption without attachments 34 W
Cooling type 2 fans
Fiber
Details
SFP DDMI Yes
SFP ports 12
SFP+ ports 1
Peripherals
Details
Memory card type microSD
Memory Cards 1
Serial console port RJ45
Number of USB ports 1
USB Power Reset Yes
USB slot type USB type A
Max USB current (A) 1
Other
Details
CPU temperature monitor Yes
PCB temperature monitor Yes
Mode button Yes
Beeper Yes
Certification & Approvals
Details
Certification CE, EAC, ROHS
IP IP20
