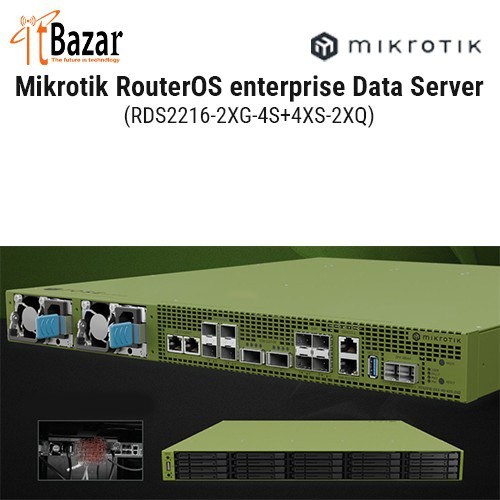

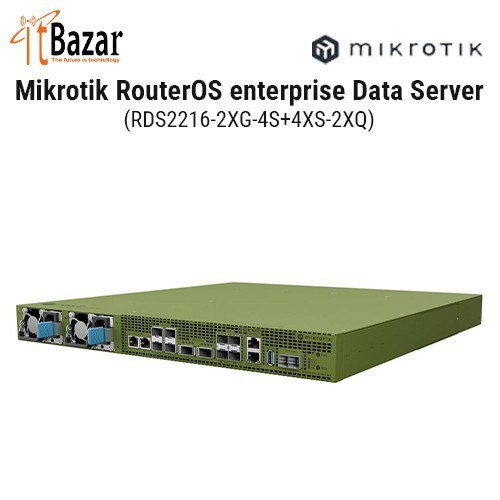

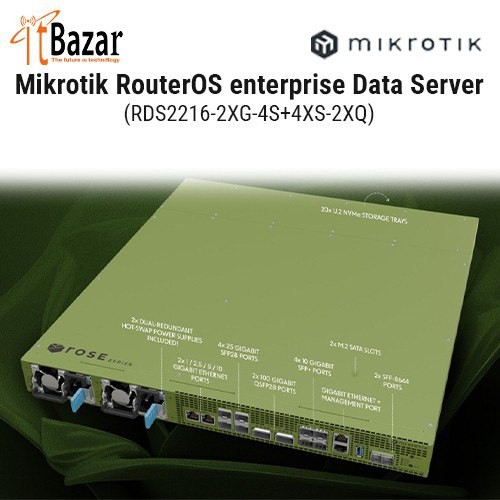

Mikrotik RDS2216 Enterprise Data Server Router OS (মাইক্রোটিক আর ডি এস ২২১৬ এন্টারপ্রাইস ডাটা সার্ভার )

RDS2216-2XG-4S+4XS-2XQ

a high-performance, all-in-one storage, networking, and container

platform designed for enterprise environments

WHY CHOOSE RDS2216?

20 U.2 NVMe storage slots – Ultra-fast, high-density storage for demanding workloads.

• 100G high-speed networking – 2× 100G QSFP28 ports, 4× 25G SFP28 ports, 4× 10G SFP+ ports, 2× 10G Ethernet

ports, and an extra SFF-8644 interface for flexible connectivity.

• 16-core 2 GHz ARM CPU + 32GB DDR4 RAM – High-performance processing for networking, storage, and

virtualization.

• Massive energy savings – Cut power consumption and heat output while maintaining high performance – an eco-

friendly solution for data-heavy environments.

• Runs RouterOS – The most flexible, modular networking OS. Supports advanced storage capabilities, including

exporting block devices over NVMe-TCP, encryption layers, and modular storage configurations for scalable

infrastructure. No subscriptions. No paywalls.

• Container & VM-ready – Run MinIO, Nextcloud, Shinobi, Frigate, and other applications with ease. We’ve added

two USB ports for additional devices and further adaptability.

• Includes dual hot-swappable power supplies – Ensuring uninterrupted operation and quick replacement without

unnecessary downtime.

Specifications

Product code RDS2216-2XG-4S+4XS-2XQ

CPU AL73400 16-Core 2000 MHz

CPU architecture ARM 64bit

Size of RAM 32 GB

RAM type DDR4

Storage 32 MB (Flash), 128 MB (NAND)

Number of 1G Ethernet ports 1

Number of 1G/2.5G/5G/10G Ethernet ports 2

Number of 10G SFP+ ports 4

Number of 25G SFP28 ports 4

Number of 100G QSFP28 ports 2

Number of M.2 SATA slots 2

U.2 support 20 PCIe gen3 trays

Additional connectivity SFF-8644 interface

Max. supported U.2 size 7 mm

USB slot 2 (USB 3.0 Type A and USB 2.0 Type A)

Switch chip model 98DX4310

Operating system RouterOS v7 only, License level 6

Dimensions 476 x 443 x 29 mm

Operating temperature -20°C to +50°C

Number of AC inputs 2 (dual-redundant hot-swap power supplies)

Nominal voltage 12 V

Nominal current 45 A

Max current 50 A

AC input range 100-240 V

Max power consumption (without attachments) 105 W

Max power consumption 286 W
