Linkbasic Cable Cat 6 UTP SOLID Cable CLA04-UC6
Inhouse product
Linkbasic Cable Cat 6 UTP SOLID Cable CLA04-UC6 লিংকবেসিক ক্যাট-৬ ক্যাবল
● Rated temperature:70℃
● Reference standard: UL Subject 444, EIA/TIA 568B.2-10& ISO/IEC 11801, IEC 61156
● Solid bare copper conductor
● Colour-coded PE insulation
● Rip cord (optional)
● PVC or LSZH jacket
● Packaging: Reel, Reel in Box
ELECTRICAL CHARACTERISTICS
MAX. Matual Capacitance @ kHz ≤5.6 nF/100M
MAX. Capacitance
unbalance (pF/ 100m) ≤330pF/100M
Nominal Velocity of
Propagation 69%
Max. Delay Skew (ns/100m) 45ns/100M
Max. Conductor DC
Resistance @ 20 Deg. C 7.32Ω /100M(23AWG)
Max. DC Resistance
unbalance @ 20 Deg. C ≤2%
Max. Insulation resistance
(MΩ/ k m) 5000
Max. Operating Voltage-UL 300V

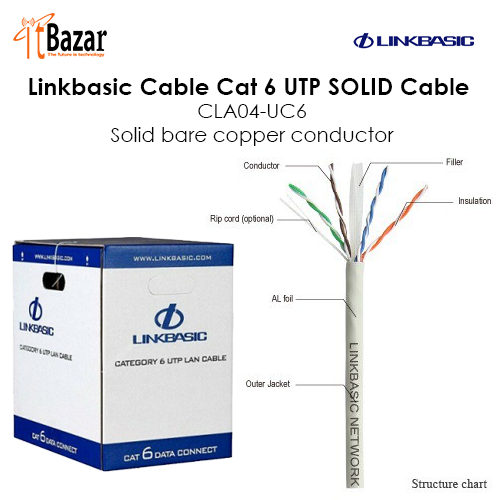

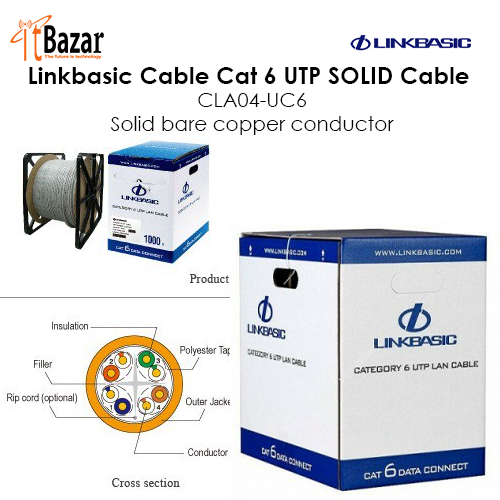

Structure Construction UTP
Number of Pairs 4 Pair
AWG 23AWG
Conductor Dimension (mm) 0.565
Solid or Stranded;
Bare or Tinned Solid Bare Copper
Insulation insulation material HDPE
Insulation Dimension [mm) 1.02
Number Colour
(Ring or Strip marking) 1.White/B[ue(Ring) & Blue
2.White/0range(Nng) & Oange
3.White/Gem(Rhg) Green
4.White/Brown(Ping) & Btuwn
Cross Filler Yes
Shield IndividuaISinleld & Material No
Outer Shield & Material No
Drain Wire No
Outer Jacket Outer Jacket Material PVC or（LSZH）
Outer Jacket Ripcord Based On Customer Requirements
Overall Nominal Diameter (mm) 23AWG UTP nom:6.2±o.3mm
