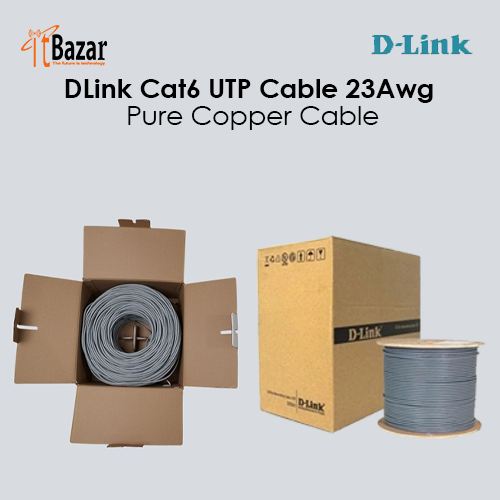

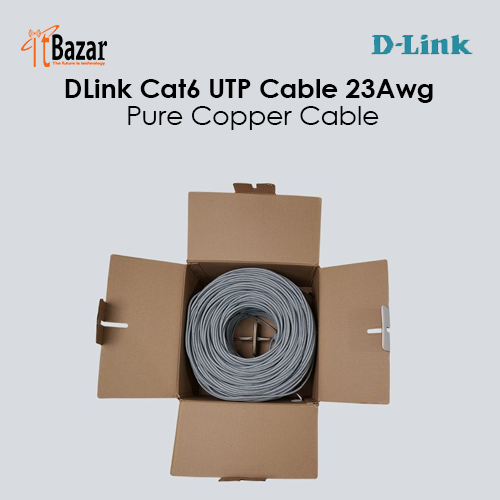

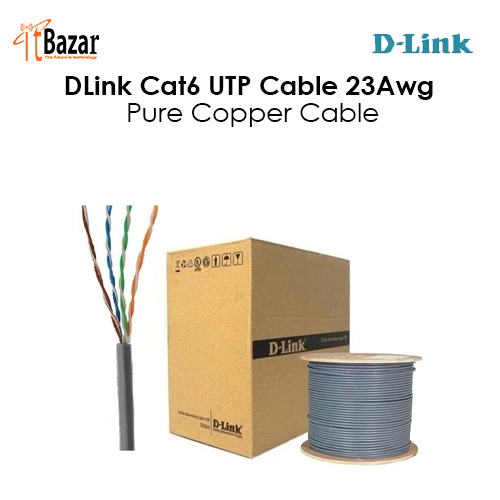

DLink Cat6 UTP Cable 23Awg Pure Copper Cable
Inhouse product
DLink Cat6 UTP Cable 23Awg Pure Copper Cable (ডি লিংক ক্যাট ৬ ইউ টিপি ক্যাবল ,পিওর কপার ক্যাবল )
D-Link CAT.6 UTP 23AWG, Easy Pull Box, 305m Box Cable
Kabel UTP D-Link Cat 6 305 Meter – Kabel UTP DLink Cat 6
Conductor Nom.O.D.(mm) 0.570 ±0.005
Insulation
Material : HDPE
Diameter : 1.02 ± 0.03mm
Sheath
Thickness : 0.55 ± 0.05 mm
External O.D. : 6.3 ± 0.4 mm
Surface : Clean,Frap,Satiation
Material : PVC Color According to the requirements
Surface Printing
Letter height : 3.0 ± 0.3mm
Color : Black
Print error & Space : ≤ ± 0.5%
Core Color
1 White- Blue /Blue 2 White-Orange /Orange
3 White-Green /Green 4 White- Brown /Brown NVP 69%
Packing Wooden Tray & Carton Capacitance(nF/100m) max: 5.6 Carton
Dimension 40.5*40.5*21cm DC Resistance (Ω /100m) max 9.5
Packing length DC Conductor Resistance Unbalance (%) max 5.0 Rip-cord Yes Drain wire No
Electrical Characteristics (20°C)
Impedance (Ω) 1.0-250.0MHz
Delay Shew (ns/100m) 1.0-250.0MHz
