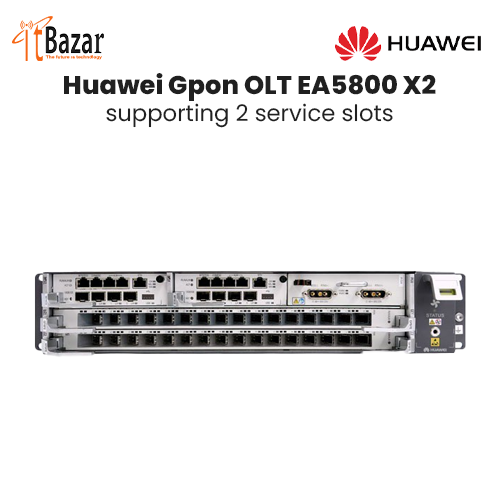

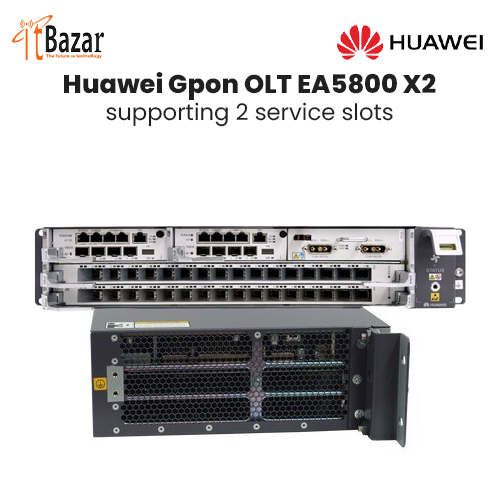

Huawei Gpon OLT EA5800-X2 32Port
EA5800-X2 is the Huawei EA5800 model, supporting 2 service slots. Developed based on the distributed architecture, the Huawei SmartAX EA5800 series multiservice access device is positioned as the next-generation OLT for NG-PON. With virtual access technology, it provides a unified carrying platform for multiple services over one fiber network, such as broadband, wireless, video, and monitoring. The EA5800 provides GPON, XG-PON, XGS-PON, P2P GE, and 10GE access, and supports POL, FTTH, FTTB, and FTTC network construction modes. Thus it simplifies network architecture and reduces OPEX.
Quick Spec
Table 1 shows the quick spec.
Model EA5800-X2
Supported Cabinets N63E-22
Board Configuration Control board slots: 3, 4
Service board or upstream interface board slots: 1 to 2
Does not support universal interface board
Power board slot: 0
Dimensions
(W x D x H) 2U high and 19 inches wide
Excluding mounting brackets: 442 mm x 268.7 mm x 88.1 mm
Including IEC mounting brackets: 482.6 mm x 268.7 mm x 88.1 mm
Including ETSI mounting brackets: 535 mm x 268.7 mm x 88.1 mm
Maximum Input Current DC power supply: 20A
AC power supply: 8A
Power Supply Modes DC power support (dual for backup)
AC power supply + battery for backup
Working Voltage Range DC power supply: -38.4V to -72V
AC power supply: 100V to 240V
Rated voltage DC power supply: -48V/-60V
AC power supply: 110V/220V
Switching Capacity of the Control Board (load sharing mode) 480 Gbit/s
Maximum Bandwidth per Service Slot (load sharing mode) 80 Gbit/s
System Layer 2 Packet Forwarding Rate (load sharing mode) 714 Mpps
GPON Ports/ XG(S)-PON Ports 32
GE/FE Ports 96
10 GE Ports 16
