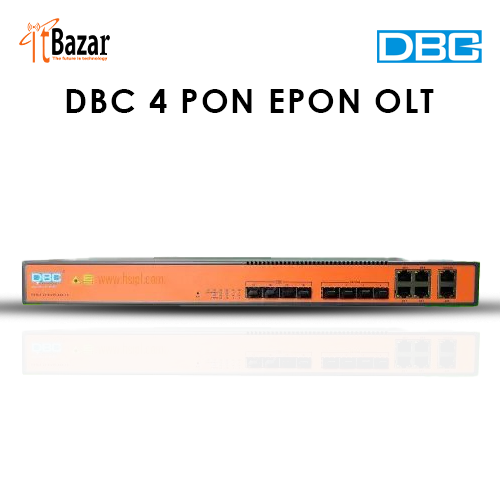

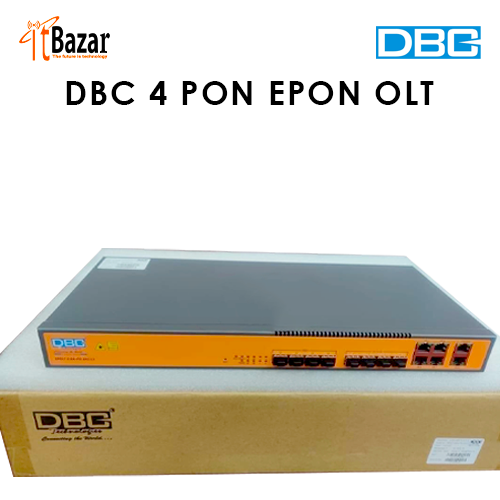

DBC 4PORT EPON OLT 10G UPLINK

(0 reviews)
Brand
DBC

Inhouse product


Price
৳40,000.00
Quantity
Total Price

Warranty: 2-YEAR

Share

DBC 4PORT EPON OLT 10G UPLINK

Introducing our 4 Port EPON OLT: the compact solution for high-speed Ethernet Passive Optical Network deployment. With four ports, it delivers reliable connectivity, scalability, and easy integration for modern networks. Upgrade now for seamless performance and efficiency.

Introduction:

EPOLT-3304-4TE-2AC-L3 is 1U height 19 inch rack mount products. The features of the OLT are small, convenient, flexible,

easy todeploy and high performance. It is appropriate to be deployed in compact room environment. The OLT' can be used for

"Triple-Play", VPN, IP Camera, Enterprise LAN and Internet service provider applications.

EPOLT-3304-4TE-2AC-L3 provides 4GE(copper) and 4*SFP/SFP+ slots independent interface for uplink, and 4*EPON OLT

ports for downlink. It can support overall 256 ONU's with 64 ONU's per PON port.


Management Ports

• 1*10/100BASE-T out-band port,

1*CONSOLE port

PON Port Specification

• Transmission Distance: 20KM

• EPON port speed” Symmetrical

1.25Gbps

• Wavelength: TX-1490nm,

RX-1310nm

• Connector: SC/UPC

• Fiber Type: 9/125μm SMF

• TX Power: +4.5dBm~+9dBm

• Rx Sensitivity: -32dBm

• Saturation Optical Power: -8dBm

Management Mode

• SNMP/Telnet/CLI/WEB/SSH v2


Management Function


Layer 2 Feature

• 16K MAC address

• Support port VLAN and protocol

VLAN

• Support 4096 VLANs

• Support VLAN tag/Un-tag, VLAN

transparent transmission, QinQ

• Support IEEE802.3d trunk

• Support RSTP, MSTP

• QoS based on port, VID, TOS

and MAC address

• IEEE802.x flow control


• Port stability statistic

and monitoring;

• Support P2P Function

Multicast

• IGMP snooping

• 256 IP Multicast Groups

DHCP

• DHCP server

• DHCP relay

• DHCP snooping


• Fan Group Control;

• Port Status monitoring and

configuration management;

• Online ONU configuration and

management;

• User management, Alarm management


Layer 3 Features

• ARP proxy

• Static route

• 1024 hardware Host Routes

• 512 hardware Subnet Routes

• Support RIPv1/v2, OSPFv2/v3

• Support PPPoE/PPPoE+
