6COM 10G SR SFP SHORT RANGE MULTIMODE
Inhouse product
6COM 10G SR SFP SHORT RANGE MULTIMODE

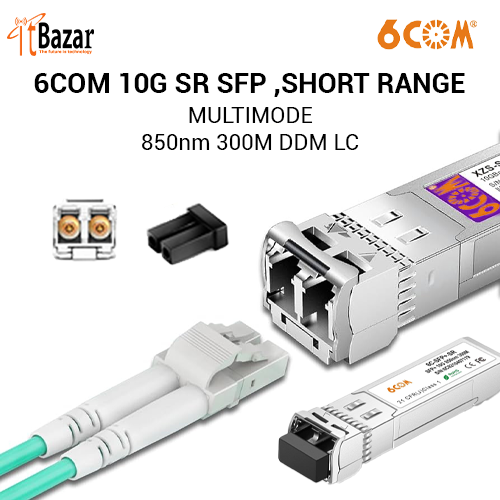

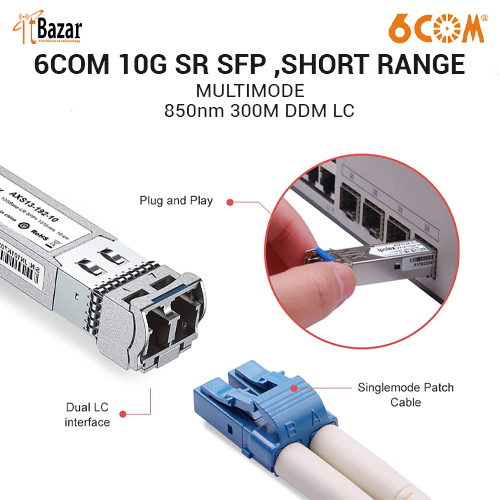

6C-SFP+-SR 10GBASE-SR SFP+ 850nm 300M DDM LC MMF Optical Transceiver Module
Features
1.Max. Power Consumption 0.6W
2.Tested in Targeted Switches for Superior Performance, Quality, and Reliability
3.Hot Pluggable SFP+ MSA Compliant
Application
1. Campus netowrk
2. Data Center access layer
3. Enterprise network
Parameters Table
Model Name: 6C-SFP+-SR Vendor Name: 6COMGIGA
Form Factor: SFP+ Data Rate: 10Gbps
Wavelength: 850nm Distance: 300m@OM4
Connector: LC Duplex Cable Type: OM3/OM4 MMF
Transmitter Type: VCSEL Receiver Type: PIN
TX Power: -6.5~-0.5dBm Receiver Sensitivity: <-11.1dBm
Power Consumption: <0.8W Temperature Range：
0 to 70°C (32 to 158°F)
DDM: Support Bit Error Ratio (BER): 1.00E-12
Protocols: IEEE 802.3ae, SFF-8472, SFF-8431, SFF-8432 Warranty: 3 Years
