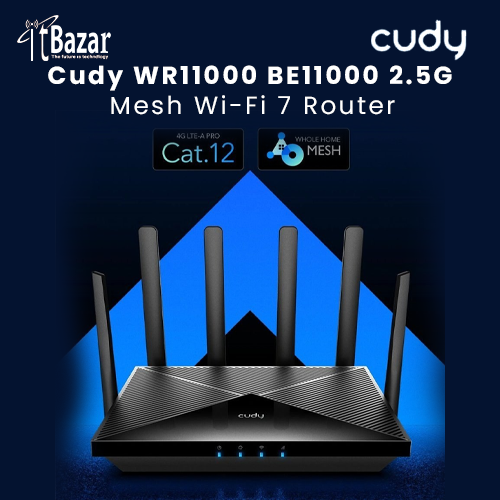

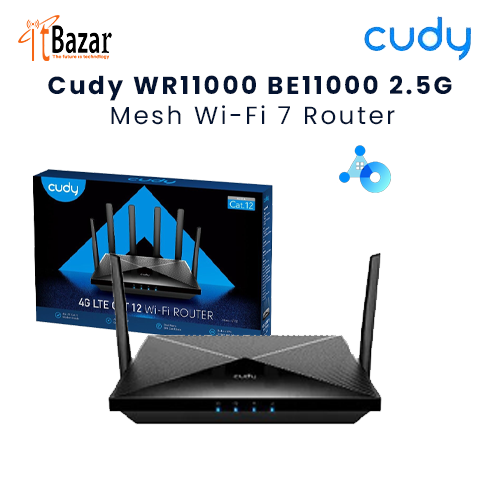

Cudy Router WR11000 BE11000 2.5G WiFi7 Mesh Router

Key Features of WR11000:

6-Stream Tri-Band Wi-Fi 7

4× 2.5G Ethernet Ports

5.7 Gbps + 4.3 Gbps + 688 Mbps

Covers 140 m² (1,500 ft²) with eFEM

Cudy App, Cloud Control

Specification:

Brand Cudy

Model WR11000

Type Cudy 2.5G Mesh Wi-Fi 7 Router

CPU Chipset: Qualcomm IPQ5322

CPU Details: 1.5 GHz Quad-Core CPU

Memory/Storage Flash/ROM: 128 MB (1 Gbit) NAND

DDR/RAM: 512 MB (4 Gbit) DDR4

Wireless 6 GHz Wi-Fi Speed: 5760 Mbps

5 GHz Wi-Fi Speed: 4320 Mbps

2.4 GHz Wi-Fi Speed: 688 Mbps

6 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)

5 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)

2.4 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)

Wi-Fi Antennas: 6× Fixed

6 GHz Antenna Gain Max: 5dBi

5 GHz Antenna Gain Max: 5dBi

2.4 GHz Antenna Gain Max: 5dBi

FEM or PA/LNA:

6 GHz: 2× High-Power

5 GHz: 2× High-Power

2.4 GHz: 2× Standard

Beamforming: True

Range Performance:

Max: 260 m (853 ft)

Indoor WiFi range varies depending on the layout and wall materials. See Wall Performance spec for placement suggestions.

Wall Performance:

Two wooden walls with thickness < 10 cm (4'')

One concrete wall with thickness < 20 cm (7'') or two concrete walls with thickness < 10 cm (4'')

Interfaces 2.5G RJ45 Ports: 4

Ethernet Notes: 1× WAN port, the rest are LAN ports

LED: TBD

Physical Buttons: Power On/Off Button. WPS Button, Reset Button

Power Input: DC Jack

Power Power Methods: DC

DC: 12V 2A

Power Adapter:

Input: 100 ~ 240 V, 50/60 Hz AC

Output: 12V 2A DC

Reliability Environment:

Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)

Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)

Humidity: 10% ~ 90% non-condensing

Storage Humidity: 5% ~ 95% non-condensing

Installation Desktop

Wall-mount

Wireless Wi-Fi Standards: Wi-Fi 7

Max Wi-Fi Modulation: 4K-QAM

Wi-Fi Efficiency: MLO, MRU, Puncturing, OFDMA, MU-MIMO, BSS Color

Max Capacity: 768

Recommended Client Upper Limit: 300

Max Wi-Fi Channel Width: 320 MHz

Wi-Fi Security: WPA/WPA2/WPA3

Guest Network: 2.4 GHz, 5 GHz, 6 GHz

WPS: True

General Operation Modes: Wi-Fi Router, Access Point, Range Extender, WISP, Client

Mesh: Cudy Mesh

Mesh Backhaul: Wireless Backhaul, Wired Backhaul

Multi-Band Backhaul: true

WAN Mode: DHCP, Static IP, PPPOE

Internet Failover Sequence: WAN, WISP

Network QoS: Per-User Rate Limiting

DHCP: Address Reservation, DHCP Client List, Server

IP Versions: IPv4/IPv6

IPv6 Protocols: Relay, Dynamic (SLAAC/DHCPv6), Static (Fixed IP), Passthrough, 464XLAT, MAP-E, DS-Lite

IPTV/VLAN: Bridge, Tag VLAN

TTL Customization: Extend, Spoof, Custom

IGMP: IGMP Proxy, IGMP Snooping

Forwarding: Port Forwarding, Port Triggering, UPnP, DMZ

Firewall: SPI Firewall, DoS Protection, Block PING

Application Layer Gateway:

IPSec Passthrough

L2TP Passthrough

PPTP Passthrough

FTP Passthrough

TFTP Passthrough

H323 Passthrough

SIP Passthrough

RTSP Passthrough

Utilities VPN Server: WireGuard, OpenVPN, IPsec, Zerotier, PPTP, L2TP

VPN Client: WireGuard, OpenVPN, IPsec, Zerotier, PPTP, L2TP

DNS Options: DNS over TLS, Manual DNS, Rebind Protection, Override Clients' DNS

DNS over TLS Providers: Cloudflare, Google, Quad9, Custom

Wake on LAN: True

Online Detection: True

Management All Devices Management: Wi-Fi Time Schedule, MAC Filter, IP/MAC Binding

Per-Devices Management: Intenent On/Off, VPN On/Off, Online Time Schedule, Device Rename

Content Management: Domain Filter, IP Filter

System LED Control: true

Local Control Method: Config Web Page, App Control

Remote Control Method: Config Page via HTTPS, App Control, TR069/TR098/TR111/TR181

Firmware Upgrade: Local Update, App (Over the Air), Online Update

Reliability: Timed Reboot, Backup and Restore

Diagnostic Tools: Diagnosis, Ping, Traceroute, NSLookup, System Log

Languages: English, Bengali, Catalan, Czech, German, Greek, Spanish, French, Hebrew, Croatian, Hungarian, Italian, Japanese, Khmer, Korean, Dutch, Norwegian, Polish, Portuguese, Romanian, Russian, Slovak, Swedish, Thai, Turkish, Ukrainian, Vietnamese, Simplified Chinese, Traditional Chinese

Dashboard Panel:

Internet Status

Mesh Status

Devices Management

WAN Status

LAN Status

WISP Status

Wi-Fi Status

VPN Status

DHCP Server Status

System Version

Charts:

Mesh Topology

Internet Speed

WISP Speed

Wi-Fi Speed

Dimensions Dimension:

253×152.5×48.2 mm

9.96×6×1.9 inches

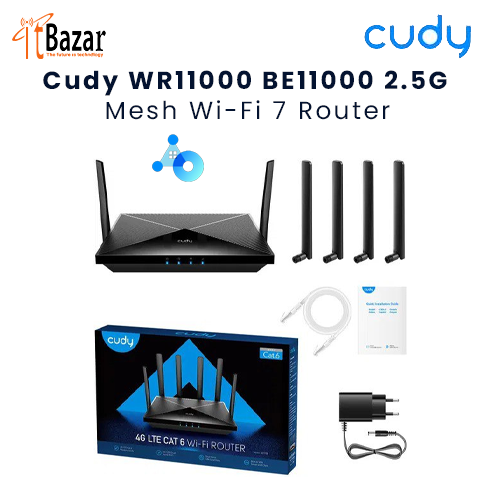

Included in the Box WR11000

Power Adapter

Ethernet Cable

Installation Guide

Warranty Details 1-Year Brand Warranty
