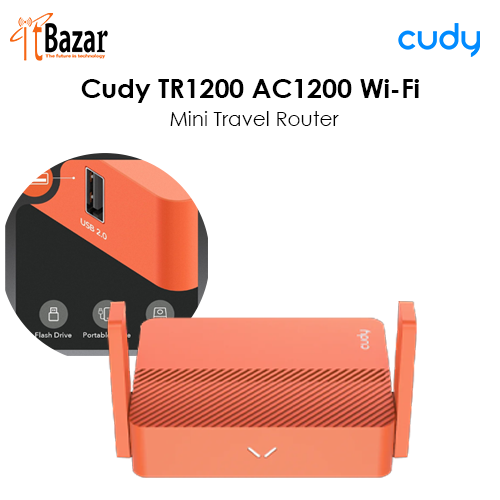

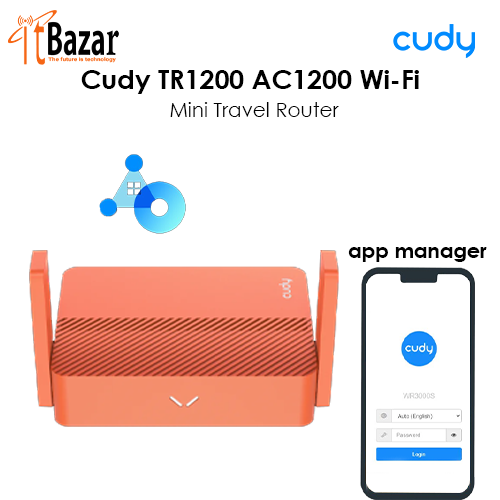

Cudy TR1200 AC1200 Mini Travel Router WiFi5

Key Features of TR1200:

4-Stream Dual-Band Wi-Fi 5

2× Fixed Wi-Fi Antennas

AC1200 Wi-Fi Speed (867 Mbps on 5GHz + 300 Mbps on 2.4GHz)

USB 2.0 Port

Powering via USB-C

Brand Cudy

Model TR1200

Type AC1200 Wi-Fi Mini Travel Router

CPU 580 MHz Single-Core, MIPS24KEC

Memory/Storage Flash/ROM: 16 MB (128 Mbit) NOR

DDR/RAM: 128 MB (1 Gbit) DDR3

Wireless 5 GHz Wi-Fi Speed: 867 Mbps

2.4 GHz Wi-Fi Speed: 300 Mbps

5 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)

2.4 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)

Wi-Fi Antennas: 2× Fixed

Range Performance:

Max: 110 m (361 ft)

Indoor WiFi range varies depending on the layout and wall materials. See Wall Performance spec for placement suggestions.

Wall Performance: Two wooden walls with thickness < 3.8 cm (1.5'')

One concrete wall with thickness < 20 cm (7'')

Wi-Fi Transmission Power:

CE:

<20 dBm (2.4 GHz)

<23 dBm (5.15 GHz ~ 5.35 GHz)

FCC:

<24 dBm (5.25 GHz ~ 5.35 GHz & 5.47 GHz ~ 5.725 GHz)

<30 dBm (2.4 GHz & 5.15 GHz ~ 5.25 GHz)

Interfaces 10/100 Mbps RJ45 Ports: 2

Ethernet Notes: 1× WAN port, 1× LAN port

USB-A 2.0 Ports: 1

LED: System

Physical Buttons: Reset Button, Configurable DIP Switch

Power Input: USB-C Port

Power Power Methods: DC / PD

DC: 5V 2A, PD

Reliability Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)

Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)

Humidity: 10% ~ 90% non-condensing

Storage Humidity: 5% ~ 95% non-condensing

Installation Desktop

Wireless Wi-Fi Standards: Wi-Fi 5

Max Wi-Fi Modulation: 256-QAM

Wi-Fi Efficiency: MU-MIMO

Wi-Fi Efficiency Note: MU-MIMO is available on 5 GHz

Max Capacity: 128

Recommended Client Upper Limit: 40

Max Wi-Fi Channel Width: 80 MHz

Wi-Fi Security: WPA-PSK (WPA/WPA2)

Guest Network: 2.4 GHz, 5 GHz

WPS: true

General Operation Modes: Wi-Fi Router, Access Point, Range Extender, WISP

Mesh: Cudy Mesh

Mesh Backhaul: Wireless Backhau, Wired Backhaul

Multi-Band Backhaul: True

WAN Mode: DHCP, Static IP, PPPOE

Network QoS: Per-User Rate Limiting

DHCP: Address Reservation, DHCP Client List, Server

IP Versions: IPv4/IPv6

IPv6 Protocols: Relay, Dynamic (SLAAC/DHCPv6), Staic (Fixed IP), Passthrough, 464XLAT, MAP-E, DS-Lite

TTL Customization: Extend, Spoof, Custom

IGMP: IGMP Proxy, IGMP Snooping

Forwarding: Port Forwarding, Port Triggering, UPnP, DMZ

Firewall: SPI Firewall, DoS Protection, Block PING

Application Layer Gateway: IPSec Passthrough, L2TP Passthrough, PPTP Passthrough, FTP Passthrough, TFTP Passthrough, H323 Passthrough, SIP Passthrough, RTSP Passthrough

Utilities VPN Server: WireGuard, OpenVPN, IPsec, Zerotier, PPTP, L2TP

VPN Client: WireGuard, OpenVPN, IPsec, Zerotier, PPTP, L2TP

VPN Performance: WireGuard Client (UL/DL): 49 / 43 Mbps, WireGuard Server (UL/DL): 43.6 / 48 Mbps

DNS Options: DNS over TLS, Manual DNS, Rebind Protection, Override Clients' DNS

DNS over TLS Providers: Cloudflare, Google, Quad9, Custom

USB Functions: Samba Server

Wake on LAN: True

Management All Devices Management: Wi-Fi Time Schedule, MAC Filter, IP/MAC Binding

Per-Devices Management: Intenent On/Off, VPN On/Off, Online Time Schedule, Device Rename

Content Management: Domain Filter, IP Filter

System LED Control: True

Local Control Method: Config Web Page

Remote Control Method: Config Page via HTTPS, TR069/TR098/TR111/TR181

Firmware Upgrade: Local Update

Reliability: Timed Reboot, Backup and Restore

Diagnostic Tools: Diagnosis, Ping, Traceroute, NSLookup, System Log

Languages: English, Bengali, Catalan, Czech, German, Greek, Spanish, French, Hebrew, Croatian, Hungarian, Italian, Japanese, Khmer, Korean, Dutch, Norwegian, Polish, Portuguese, Romanian, Russian, Slovak, Swedish, Thai, Turkish, Ukrainian, Vietnamese, Simplified Chinese, Traditional Chinese

Dashboard Panel: Internet Status, Mesh Status, Devices Management, WAN Status, LAN Status, WISP Status, Wi-Fi Status, VPN Status, DHCP Server Status, System Version

Charts: Mesh Topology, Internet Speed, WISP Speed, Wi-Fi Speed

Dimensions 118×80×27.5 mm

4.65×3.15×1.08 inches

Weight 99.9 g (3.52 oz.)

Included in the Box Main Product

Ethernet Cable

Installation Guide

Warranty Details 1-Year Brand Warranty
