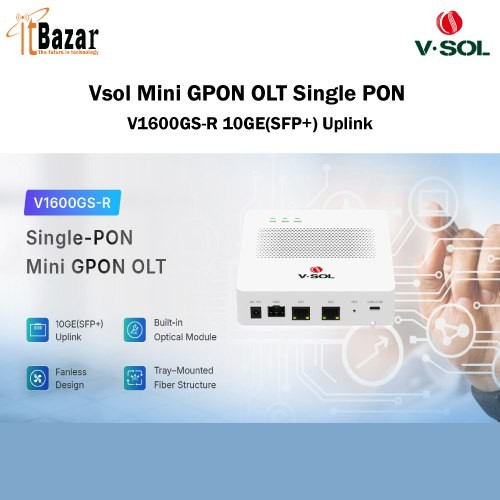

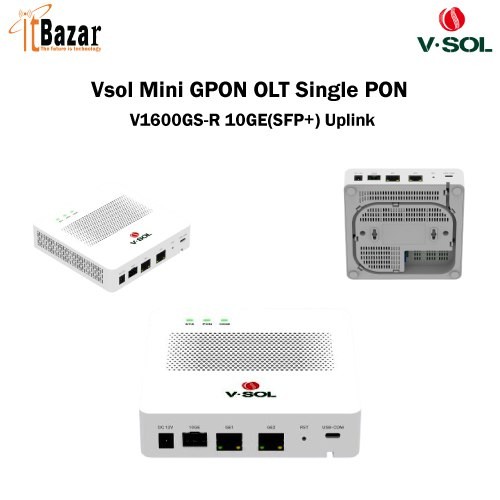

Vsol Mini GPON OLT

10GE(SFP+) Uplink | Split Ratio 1:64 | Fanless

Model: V1600GS-R

V1600GS-R Single-PON Port GPON OLT features a compact, portable design suitable for desktop deployment andsupportswall-mount installation, effortlessly adapting to diverse scenarios. Combining robust performance with high cost-effectiveness, it servesasan optimal solution for ultra-low-cost deployment. The built-in bottom fiber tray structure not only effectively protects the fiber and enhances operational safety but alsosimplifiesfiberinstallation and maintenance processes. With a PON port splitter ratio of 1:64, it is suitable for low-density scenarios, offeringamaximum transmission distance of 20KM and uplink/downlink bandwidths of up to 1.25Gbps/2.5Gbps. It is widely applicablefor FTTX,SOHO, and small business office environments. High Performance Chipset Built-in PON optic module

Technical Specifications

Ordering Information:

• Tcont DBA

• Gemport traffic

• In compliant with ITU-T984.x standard

• Up to 20KM transmission Distance

• Support data encryption, multi-cast, port

VLAN, separation, etc

• Support ONT auto-discovery/link

detection/remote upgrade of software

• Support VLAN division and user separation to avoid broadcast storm

• Support power-off alarm function, easy for

link problem detection

• Support broadcasting storm resistance

function

Weight

• Net weight: 0.23kg

Working Temperature• -10°C ~+55°C

Storage Temperature• -40~+70°C

Relative Humidity

• 5~95% (non-condensing)

Management Function

• Telnet,CLI,WEB,SNMP; • Port Status monitoring and configuration management • Online ONTconfiguration and management • User management • Alarm management

Layer2 Switch

• 8K Mac address

• Support 4096 VLANs

• Support port VLAN

• Support VLAN tag/Un-tag, VLAN

transparent transmission

• Support VLAN translation、QinQ and P2P

• Support storm control based on port • Support port isolation

• Support port rate limitation

• Support 802.1D and 802.1W

• Access control list • IEEE802.x flowcontrol • Port stability statistic and monitoring

Item V1600GS-R

Uplink Port

QTY 3

RJ45(GE) 2

SFP(GE)/SFP+(10GE) 1

GPON Port Specification

QTY 1

Fiber Type 9/125μm SM

Connector SC/UPC,TX:7.5±0.5dBm,Sen: -30dBmGPON port speed Upstream 1.244Gbps, Downstream 2.488Gbps

Wavelength TX 1490nm, RX 1310nm

Max splitting ratio 1:64

Transmission Distance 20KM

Management Ports 1*USB-COM(Type-C) port

Backplane Bandwidth (Gbps) 29

Port Forwarding Rate(Mpps) 21.576

Management Mode WEB/Telnet/CLI/SNMP

Power Supply DC Power Adapter DC 12V/1A

Maximum power consumption of the whole machine 5W

Lightning protection level Power supply 4KV

Device Interface 1KV
