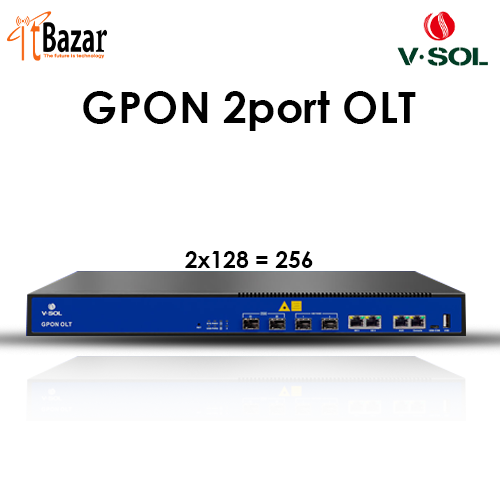

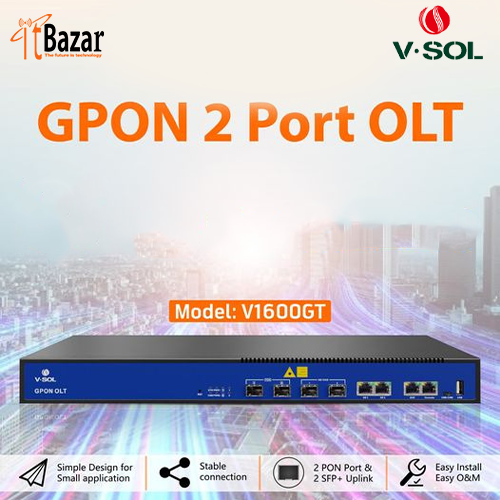

VSOL 2PORT GPON OLT V1600GT RACK MOUNT
Inhouse product
VSOL 2PORT GPON OLT V1600GT RACK MOUNT ভি সল জীপন ও এল টি
2 Port GPON OLT
Model: V1600GT
Spec: 2*GE(RJ45)+2*GE(SFP)/10GE(SFP+)
Weight: 2.485kg
The V1600GT is a box-type GPON OLT with two GPON ports that meets flexible and fast FTTx access, suitingthescenariossuch as sparse/ remote/cost-sensitive area,smart industrial park, commercial building and FTTM, etc. I
Chassis Rack 1U 19Inch Standard Box
Uplink Port
QTY 4
RJ45(GE) 2
SFP(GE)/SFP+(10GE) 2
GPON Port
QTY 2
Physical Interface SFP Slots
Supported PON module level Class C++/Class C+++/Class C++++
Max splitting ratio 1:128
Management Ports
1*10/100/1000BASE-T out-band port, 1*CONSOLEport, 1*USB-COM, 1*USB2.0
Backplane Bandwidth (Gbps) 208
Port Forwarding Rate(Mpps) 40.176
PON Port Specification
(Class C+++)
Transmission Distance 20KM
PON port speed Upstream 1.244Gbps, Downstream 2.488Gbps
Wavelength TX 1310nm, RX 1490nm
Connector SC/UPC
Fiber Type 9/125μm SMF
TX Power +4.5~+10dBm
Rx Sensitivity ≤ -30dBm
Saturation Optical Power -12dBm
Management Mode WEB , Telnet , CLI
Reviews & Ratings
Product Queries (0)
Login Or Registerto submit your questions to seller
Other Questions
No none asked to seller yet
Frequently Brought Products

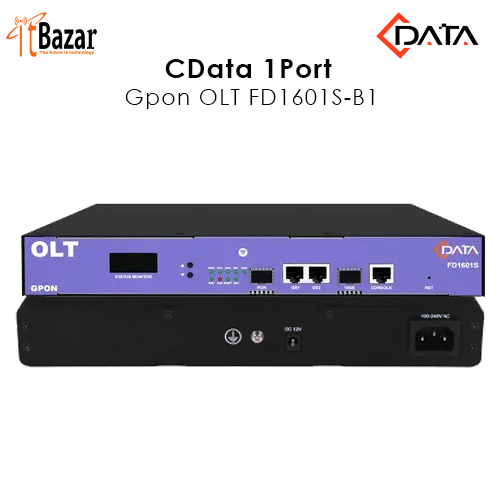

CData 1Port Gpon OLT FD1601S-B1

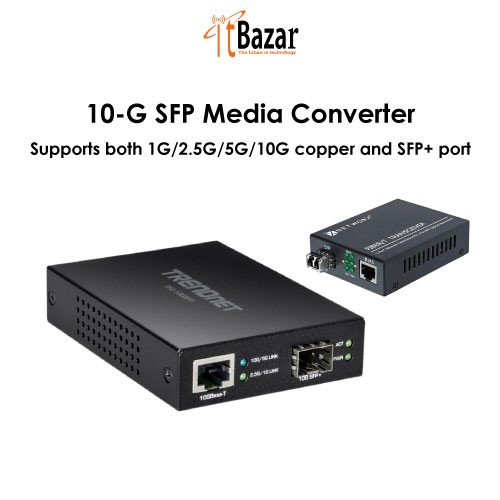

10G SFP Media Converter

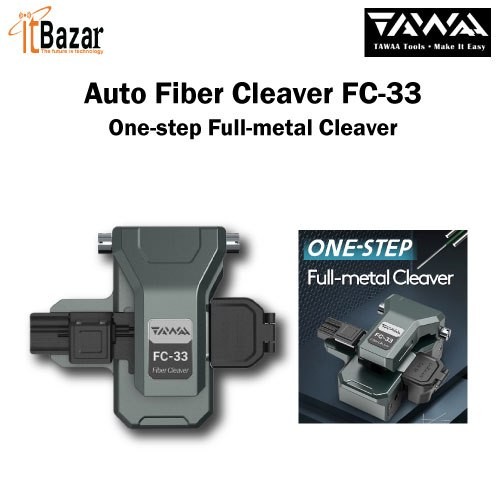

Auto Fiber Cleaver TAWAA FC-33

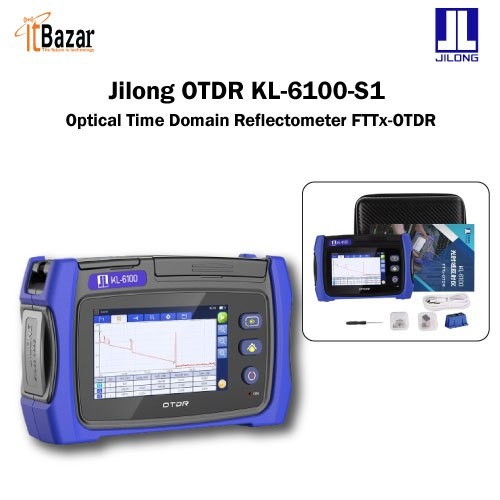

Jilong OTDR KL-6100-S1
