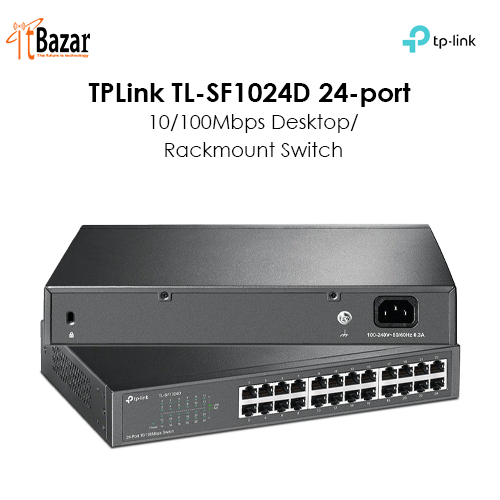

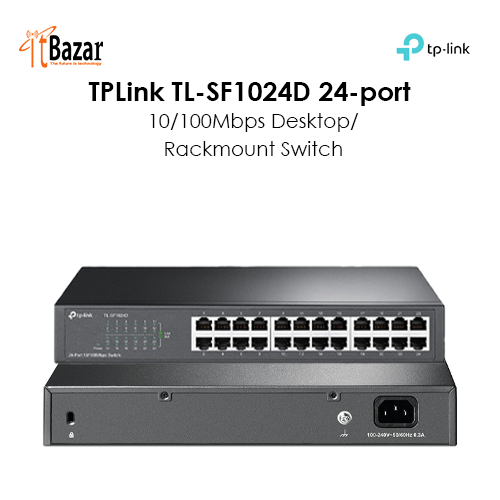

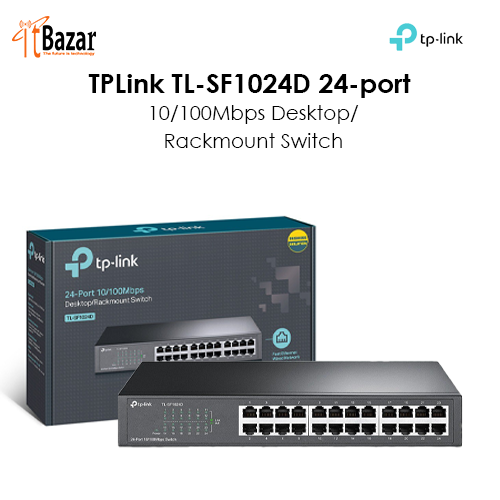

TPLink TL-SF1024D 24-port 10/100Mbps Desktop/Rackmount Switch
Inhouse product
TPLink TL-SF1024D 24-port 10/100Mbps Desktop/Rackmount Switch
24-port 10/100Mbps Desktop/Rackmount Switch
24 10/100M RJ45 ports.
Innovative energy-efficient technology saves power up to 75%
Supports MAC address self-learning and auto MDI/MDIX.
Standard 13-inch steel case.
HARDWARE FEATURES
Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Interface 24 10/100Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX: UTP category 5, 5e or above cable (maximum 100m)
Fan Quantity Fanless
Physical Security Lock Yes
Power Supply External Power Adapter(Output: 9VDC/0.6A)
Power Consumption Maximum: 3.2W
Dimensions ( W x D x H ) 11.6*7.1*1.7 in. (294*180*44 mm)
Mounting Rack Mountable
Max Power Consumption 3.19W(220V/50Hz)
Max Heat Dissipation 10.88BTU/h
PERFORMANCE
Switching Capacity 4.8Gbps
Packet Forwarding Rate 3.57Mpps
MAC Address Table 8K
Buffer Memory 2Mb
Green Technology Innovative energy-efficient technology saves power up to 75%
Transfer Method Store-and-Forward
OTHERS
Certification FCC, RoHS
Package Contents 24-Port 10/100Mbps Desktop/Rackmount Switch
Power Cord
Installation Guide
Rackmount Kit
Rubber Feet
Environment Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
