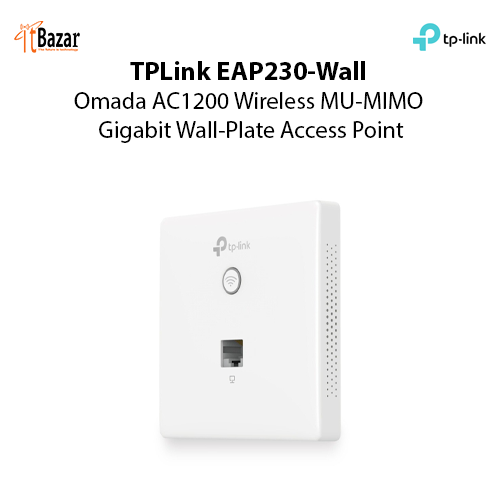

TPLink EAP230 Wall Plate Access Point Omada AC1200 Wireless MU-MIMO Gigabit

Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point

Fast Dual-Band Wi-Fi: Simultaneous 300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz totals 1,167 Mbps Wi-Fi speeds with MU-MIMO.†

Gigabit Ports: 2 Gigabit Ethernet ports (1× uplink + 1× downlink).

Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)‡, Centralized Cloud Management, and Intelligent Monitoring.

Centralized Management: Cloud access and Omada app for ultra convenience and easy management.

Private Connection for Every Room: Designed to meet every network need in environments with numerous separated rooms, like hotels, offices, and dormitories.

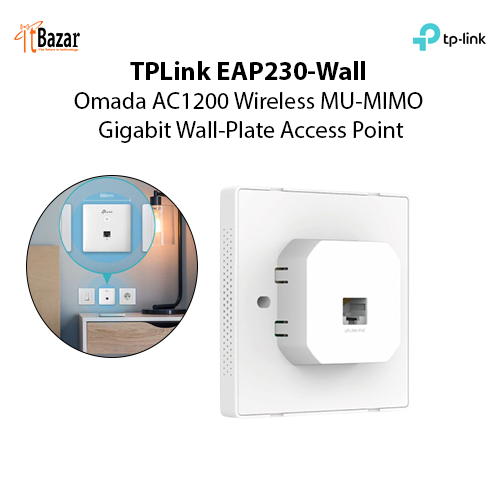

Elegant Appearance: Unprecedented thin design with just 11 mm, the same size and shape as a light switch or power outlet faceplate to fit perfectly in any room.

Easy Installation and PoE Support: Easy-mount construction, compatible with 86 mm & EU standard junction box, and 802.3af/at PoE support.

Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.

HARDWARE FEATURES

Interface • Uplink: 1× 10/100/1000 Mbps Ethernet Port

• Downlink: 1× 10/100/1000 Mbps Ethernet Port

Physical Security Lock No

Button LED/Wi-Fi Button, RESET

Power Supply 802.3af/802.3at PoE

Power Consumption 7 W

Dimensions ( W x D x H ) 3.4 × 3.4 × 1.2 in (86.8 × 86.8 × 30.2 mm)

Dimensions 3.4 × 3.4 × 1.2 in (86.8 × 86.8 × 30.2 mm)

Antenna 2 Dual-Band Antennas

• 2.4 GHz: 2× 4 dBi

• 5 GHz: 2× 3.6 dBi

Mounting Wall Plate Mounting

Hardware Watch Dog Yes

WIRELESS FEATURES

Coverage 25㎡(300 ft²)**

Wireless Client Capacity 200+*

Concurrent Clients 200+*

Wireless Standards IEEE 802.11n/g/b/ac

Frequency 2.4 GHz and 5 GHz

Signal Rate • 5 GHz: Up to 867 Mbps

• 2.4 GHz: Up to 300 Mbps

Wireless Functions • 16 SSIDs (Up to 8 SSIDs on each band)

• Enable/Disable Wireless Radio

• Automatic Channel Assignment

• Transmit Power Control (Adjust Transmit Power on dBm)

• QoS(WMM)

• Load Balance

• Rate Limit

• Reboot Schedule

• Wireless Schedule

• Wireless Statistics based on SSID/AP/Client

• MU-MIMO

• Band Steering

• Beamforming

Wireless Security • Captive Portal Authentication

• Access Control

• Wireless Mac Address Filtering

• Wireless Isolation Between Clients

• SSID to VLAN Mapping

• Local LAN port based VLAN

• Rogue AP Detection

• 802.1X Support

• 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK

Transmission Power CE:

• ≤20 dBm (2.4 GHz, EIRP)

• ≤23 dBm (5 GHz, EIRP)

MANAGEMENT

Omada App Yes

Centralized Management • Omada Cloud-Based Controller

• Omada Hardware Controller (OC300)

• Omada Hardware Controller (OC200)

• Omada Software Controller

Cloud Access Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)

Email Alerts Yes

LED ON/OFF Control Yes

Management MAC Access Control Yes

SNMP v1,v2c

System Logging Local/Remote Syslog Local/Remote Syslog

SSH Yes

Web-based Management HTTP/HTTPS

L3 Management Yes

Multi-site Management Yes

Management VLAN Yes

Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller.

OTHERS

Certification CE, RoHS

Package Contents • Omada AC1200 Wireless MU-MIMO Gigabit Wall-Plate Access Point EAP230-Wall

• Installation Guide

• Mounting Screw

System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10

Environment • Operating Temperature: 0–40 ℃ (32–104 ℉)

• Storage Temperature: -40–70 ℃ (-40–158 ℉)

• Operating Humidity: 10–90% RH non-condensing

• Storage Humidity: 5–90% RH non-condensing
