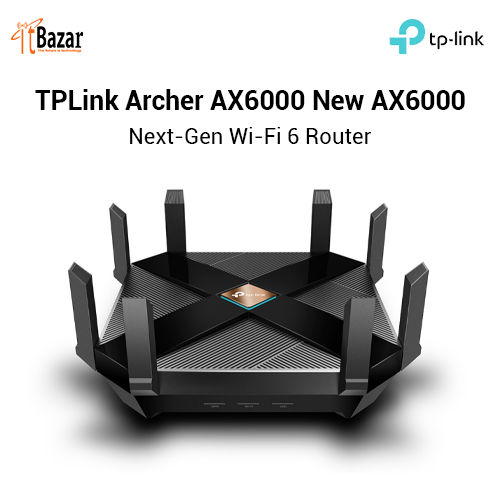

TPLink Archer AX6000 New AX6000 Next-Gen Wi-Fi 6 Router

Blazing Speed - AX6000 Dual-Band Wi-Fi speed boosted by 1024QAM deliver astonishing wireless speed up to 5952 Mbps: 4804 Mbps (5 GHz) and 1148 Mbps (2.4 GHz)

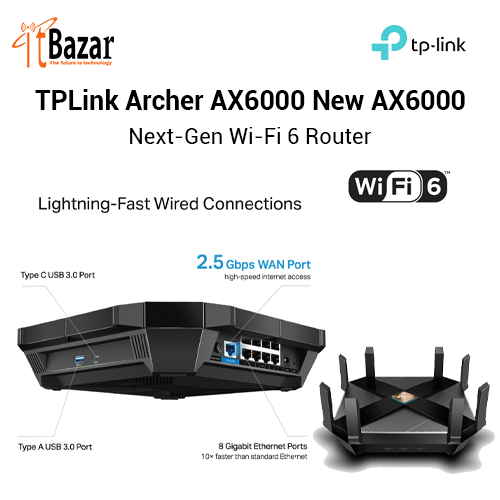

Ultra Connective - 1 × 2.5 Gbps WAN port, 8 × Gigabit LAN ports, and 2 × USB 3.0 in Type A and Type C

Highly Efficient - OFDMA increases average throughput by 4× in high-density scenarios, compared with an 802.11ac standard router. Downlink and uplink MU-MIMO are both supported.

Powerful Processing - 1.8 GHz Quad-Core CPU and 2 coprocessors eradicate latency and deliver stable performance

Intelligent Connection - Band Steering directs clients to the less congested band and Airtime Fairness optimizes the time usage

Security System Built-In - TP-Link HomeCareTM provides the whole network with advanced antimalware service powered by Trend MicroTM, delivering Antivirus, Parental Controls and QoS

Easy Setup - Link to your router via Bluetooth and set it up in minutes with the powerful Tether app

SECURITY

Network Security SPI Firewall

Access Control

IP & MAC Binding

Application Layer Gateway

HomeCare™ Antivirus

Malicious Site Checker

Port Intrusion Prevention

Infected Device Isolation

Notification and Log

Guest Network 1× 5 GHz Guest Network

1× 2.4 GHz Guest Network

VPN Server OpenVPN

PPTP

VPN Client • Open VPN Client

• PPTP VPN Client

• L2TP VPN Client

WiFi Encryption WPA

WPA2

WPA3

WPA/WPA2-Enterprise (802.1x)

WIRELESS

Standards Wi-Fi 6

IEEE 802.11ax/ac/n/a 5 GHz

IEEE 802.11ax/n/b/g 2.4 GHz

WiFi Speeds AX6000

5 GHz: 4804 Mbps (802.11ax)

2.4 GHz: 1148 Mbps (802.11ax)

WiFi Range 4 Bedroom Houses

8× Fixed High-Performance Antennas

Multiple antennas form a signal-boosting array to cover more directions and large areas

Beamforming

Concentrates wireless signal strength towards clients to expand WiFi range

High-Power FEM

Improves transmission power to strengthen signal coverage

4T4R

Multiple streams in the same band strengthen the fault tolerance in transmission

WiFi Capacity Very High

Dual-Band

Allocate devices to different bands for optimal performance

4×4 MU-MIMO

Simultaneously communicates with multiple MU-MIMO clients

OFDMA

Simultaneously communicates with multiple Wi-Fi 6 clients

Airtime Fairness

Improves network efficiency by limiting excessive occupation

DFS

Access an extra band to reduce congestion

8 Streams

Connect your devices to more bandwidth

Working Modes Router Mode

Access Point Mode

HARDWARE

Processor 1.8 GHz 64 Bit Quad-Core CPU

Ethernet Ports 1× 2.5 Gbps WAN Port

8× Gigabit LAN Ports

Static Link Aggregation (LAG) available with 2× LAN ports

USB Support 1× USB-C 3.0 Port

1× USB-A 3.0 Port

Supported Partition Formats:

NTFS, exFAT, HFS+, FAT32

Supported Functions:

Apple Time Machine

FTP Server

Media Server

Samba Server

Buttons Wi-Fi On/Off Button

Power On/Off Button

LED On/Off Button

WPS Button

Reset Button

Power 12 V ⎓ 4 A

SOFTWARE

Protocols IPv4

IPv6

Service Kits HomeCare™

Learn More>

OneMesh™ OneMesh™ Supported

Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products.

Learn More>

All OneMesh Products>

Parental Controls HomeCare™ Parental Controls

Custom Profiles

Content Filtering

App Block

URL Filtering

Time Limit

Time Schedule (Bedtime)

Log Insight

WAN Types Dynamic IP

Static IP

PPPoE

PPTP

L2TP

Quality of Service QoS by Device

HomeCare™ QoS

QoS by Application

Cloud Service Auto Firmware Upgrade

OTA Firmware Upgrade

TP-Link ID

DDNS

NAT Forwarding Port Forwarding

Port Triggering

DMZ

UPnP

IPTV IGMP Proxy

IGMP Snooping

Bridge

Tag VLAN

DHCP Address Reservation

DHCP Client List

Server

DDNS TP-Link

NO-IP

DynDNS

Management Tether App

Webpage

Check Web Emulator>

OTHER

System Requirements Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser

Cable or DSL Modem (if needed)

Subscription with an internet service provider (for internet access)

Certifications FCC, CE, RoHS

Environment Operating Temperature: 0℃~40℃ (32℉ ~104℉)

Storage Temperature: -40℃~70℃ (-40℉ ~158℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

TEST DATA

WiFi Transmission Power CE:

<20dBm(2.4GHz)

<23dBm(5.15GHz~5.35GHz)

<30dBm(5.47GHz~5.725GHz)

FCC:

<30dBm(2.4GHz & 5.15GHz~5.25GHz & 5.725GHz~5.825GHz)

<24dBm(5.25GHz-5.35GHz & 5.47GHz-5.725 GHz)

WiFi Reception Sensitivity 5 GHz：

11a 6Mbps:-97dBm,11a54MBps:-79dBm

11ac VHT20 MCS0:-97dBm,11ac VHT20 MCS11:-67dBm

11ac VHT40 MCS0:-95dBm,11ac VHT40 MCS11:-64dBm

11ac VHT80 MCS0:-92dBm,11ac VHT80 MCS11:-61dBm

11ac VHT160 MCS0:-87dBm,11ac VHT160 MCS11:-55dBm

11ax HE20 MCS0:-95dBm,11ax HE20 MCS11:-64dBm

11ax HE40 MCS0:-93dBm,11ax HE40 MCS11:-61.5dBm

11ax HE80 MCS0:-89dBm,11ax HE80 MCS11:-58.5dBm

11ax HE160 MCS0:-86dBm,11ax HE160 MCS11:-56dBm

2.4 GHz:

11g 6Mbps:-97dBm,11a54MBps:-79dBm

11n HT20 MCS0:-97dBm,11n HT20 MCS7:-78dBm

11n HT40 MCS0:-95dBm,11n HT40 MCS7:-75dBm

11ac VHT20 MCS0:-96dBm,11ac VHT20 MCS11:-67dBm

11ac VHT40 MCS0:-94dBm,11ac VHT40 MCS11:-64dBm

11ax HE20 MCS0:-95dBm,11ax HE20 MCS11:-64dBm

11ax HE40 MCS0:-93dBm,11ax HE40 MCS11:-62dBm

PHYSICAL

Dimensions (W×D×H) 10.3 × 10.3 × 2.4 in.

(261.2 × 261.2 × 60.2 mm)

Package Contents Wi-Fi Router Archer AX6000

Power Adapter

RJ45 Ethernet Cable

Quick Installation Guide
