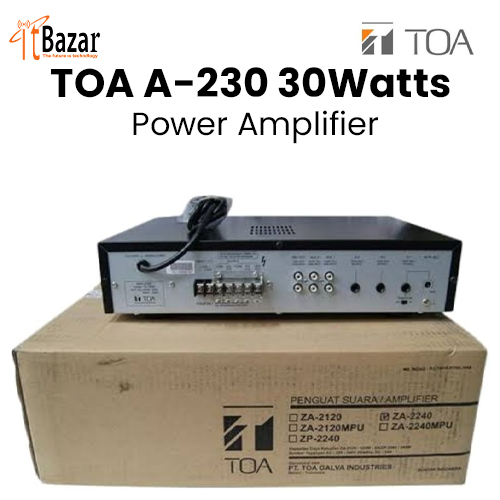

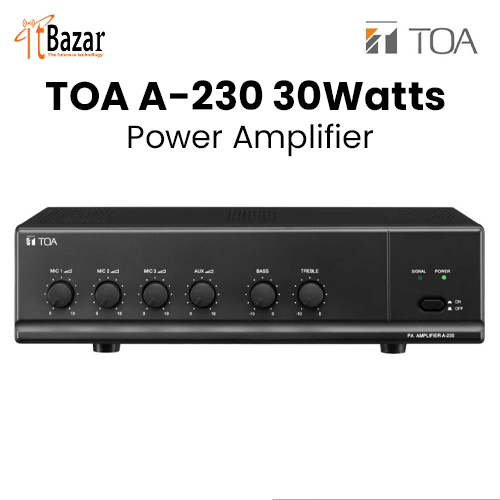

ToA Amplifier 30Watt A-230
Inhouse product
ToA Amplifier 30Watt A-230
The Toa a-230 is perfect for any restaurant, pub, shop or
house of worship. This amplifier can broadcast paging and provide background
music with a power output up to 30 watts (at 1 kHz at the rated distortion of
1%). The amplifier has an AC input voltage range from 100 – 240 VAC 50/60 Hz.
The power amplifier is a device to increase the amplitude of audio
signals. It can be used with speakers, headphones or as an input for recording
consoles and mixers. This unit has been engineered specifically for use in
professional sound reinforcement systems; its wide frequency response range (50
Hz – 20 kHz) makes it suitable for any modern application where high fidelity
reproduction is required.
Rated Output: The rated output on this amp ranges from 30 watts
all the way up to 100 watts depending on your needs.
Specification
·
Power Source: 240 V AC, 50 Hz
·
Rated Output: 30 W
·
Power Consumption: 34
W (AC operation at EN60065)
·
Frequency Response: 50
Hz – 20 kHz
·
Distortion: 1 % or less at 1 kHz,
1/3 rated power
·
Input MIC 1: -60 dB* (1.0 mV), 600
Ω, Unbalanced, Equivalent to 5-pin DIN Type, MIC 2: -60 dB* (1.0 mV), 600 Ω,
Unbalanced, Equivalent to phone jack Type, AUX 1, 2: -20 dB* (100 mV), 10 kΩ,
unbalanced, RCA pin jack
·
Output Speaker out: Floating
balanced; High impedance: 330 Ω (100 V);Low impedance: 4 Ω (11 V)
·
Signal to Noise Ratio 60
dB or more (MIC 1, 2); 70 dB or more (AUX 1, 2)
·
Tone Control Bass: -10
dB at 100 Hz; Treble: -10 dB at 10 kHz
·
Muting MIC 1 overrides other
Mic input and AUX inputs with 0 – 30 dB attenuation, attenuation by switch
·
Indicator: Power LED, Signal LED
·
Operating Temperature -10
℃ to +40 ℃ (14 ゜F to 104 ゜F)
·
Finish Panel: ABS resin, black
Hairline; Case: Steel plate, black, paint
·
Dimensions: 350 (W) × 105 (H) ×
240 (D) mm (13.78″ × 4.13″ × 9.45″)
·
Weight: 3.5 kg (7.72 lb)
