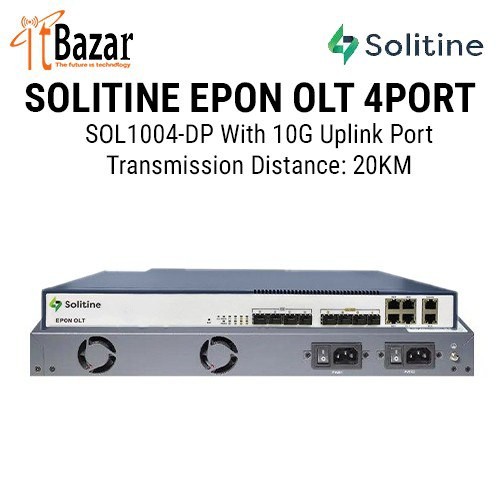

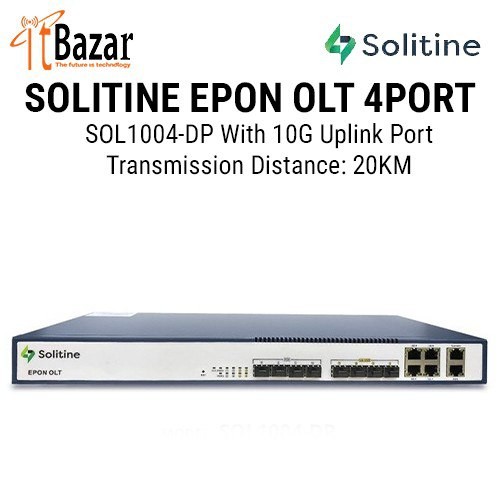

SOLITINE EPON OLT 4PORT SOL1004-DP With 10G Uplink Port
Inhouse product
SOLITINE EPON OLT 4PORT SOL1004-DP With 10G Uplink Port সলিটাইন ইপন ও.এল.টি ৪পোর্ট ১০জি উপলিংক
Management Function
Fan Group Control;
Port Status monitoring and configuration management;
Online ONU configuration and management;
User management, Alarm management
PON Port Specification
Transmission Distance: 20KM
EPON Port Speed Symmetrical 1.25Gbps
Wavelength: TX 1490nm, RX 1310nm
Connector: SC/UPC
Fiber Type: 9/125?m SMF
TX Power: +4.5dBm~+9dBm
Rx Sensitivity: -32dBm
Saturation Optical Power: -8dBm
Management Ports
1*10/100BASE-T out-band AUX port,
1*CONSOLE port
Layer 2 Feature
16K MAC address
Support port VLAN and protocol VLAN
Support 4096 VLANs
Support VLAN tag/Un-tag, VLAN transparent transmission, QinQ
Support IEEE802.3d trunk
Support RSTP, MSTP
QoS based on port, VID, TOS and MAC address
IEEE802.x flow control
