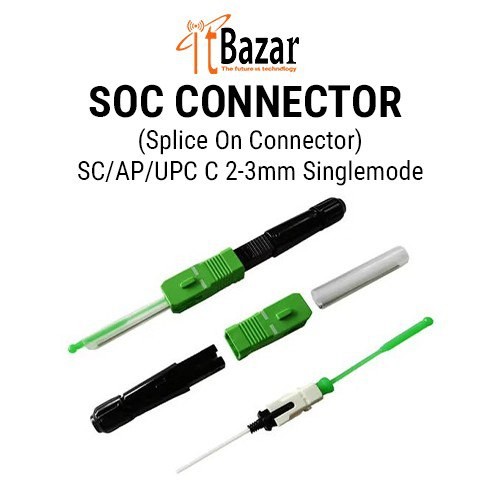

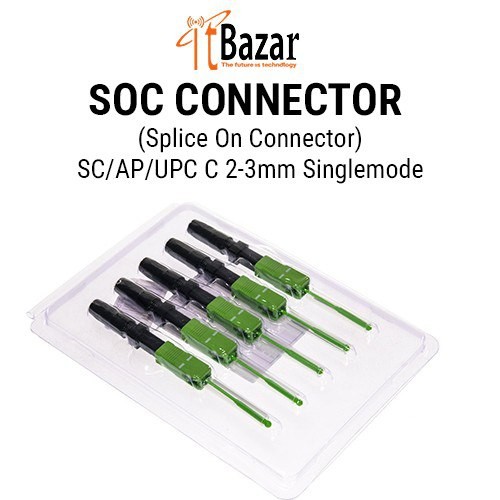

SOC CONNECTOR (Splice On Connector)
Inhouse product
SOC CONNECTOR (Splice On Connector)
Sc Upc Sc APC Sm Fiber Optic Splice on Connector Soc for FTTH Drop Cable
Fusion splice-on connector (SOC) is optical fiber type quick connector, which used for splicing point inside the connector end, equivalently eliminate the pigtails when splicing. The advantage is no need additional protection after splice, such as splice tray, splice closure, distribution box. In contract to the design of mechanical splice connector, it save V-groove mechanical connector maintenance and operation cost and durable, which overturns the concept that high cost of splice machine and do not apply to FTTH construction.
Specifications
Item Fusion Splice-on Connector
Cable 250um, 900um, 2.0mm, 3.0mm fiber cable or 3.1*2.0mm drop cable
Fiber type Single mode, G652D, G657.A2
Tight buffer diameter 250um
Ferrule Type All Zirconica Pre-Polished Ferrules
Insertion loss ≤0.3dB (Typical)
Return loss UPC ≥50dB, APC≥60dB
Bare fiber solid tightness 250g
Working temperature -40ºC-+80ºC
Tensile strength 60N(5kgs for 2mins)
Comply with Standard TELCORDIA GR-326-CORE & TELCORDIA GR-1081-CORE
