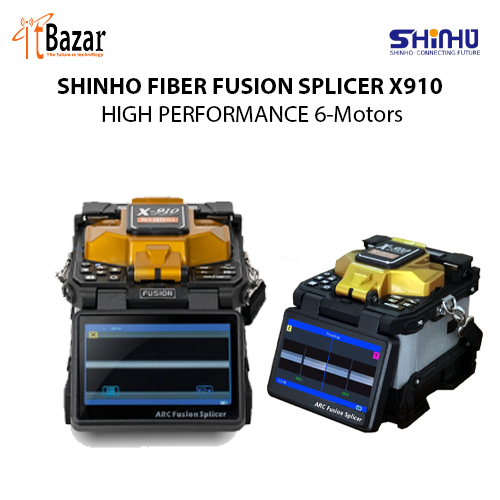

SHINHO SPLICER X910 High Performance 6MOTOR Fiber Fusion Splicer
Inhouse product
SHINHO SPLICER X910 High Performance 6MOTOR Fiber Fusion Splicer
High Performance Fiber Fusion Splicer
6 motors accurate core alignment
Identifying fiber types automatically
Mirrorless design, easy to maintain
Upgraded CPU with 30% power saving
6 seconds typical splicing and 16 seconds heating
Automatic & real-time ARC & fiber position calibration
Industrial design, anti-shock, anti-dust & waterproof
Real-time heating temperature monitoring
Suitable for bare fiber, patch cords, drop cable etc.
Alignment method 6 motors core to core alignment
Applicable fiber SM(G.652)，MM(G.651)，DS(G.653)，NZDS(G.655), BIF(G.657)
Cladding diameter 80 -150μm
Coating diameter 160–1000μm
Cleaved length 5-16mm ( coating diameter ＜ 250um), 16mm
Typical splice loss SM: 0.02dB；MM: 0.01dB；DS: 0.04dB；NZDS: 0.04dB
Return loss ＞60dB
Splicing program 40 groups
Operation mode Manual/ Automatic
Auto- heating Available
Typical splice time 6 seconds
Typical heating time 18 seconds for 60mm and 40mm shrinkable sleeves
Fiber magnification 250X(X or Y view), 125X(X and Y view)
Viewing display Dual high sensitivity camera, 5 inch 800*480 LCD Monitor
Data storage 4000 groups data records
Loss evaluation Available
Tension test 1.8～2.25N
Interface GUI menu interface, easy for operation
Battery capacity 5200mAh Li-battery, 300 cycles splicing and heating
Power supply Adaptor, input: AC100-240V(50/60HZ),output: DC11-13.5V
Electrode life More than 4000 ARC discharges, easy to replace
Terminals USB 2.0 port, for software upgrading, records exporting
Operating condition Humidity:0-95%,Temperature:-10℃～+50℃;Wind:max15m/s
Dimension/Weight 156mm (L)×141mm (W)×156mm (H) /2.45kg (including battery)
