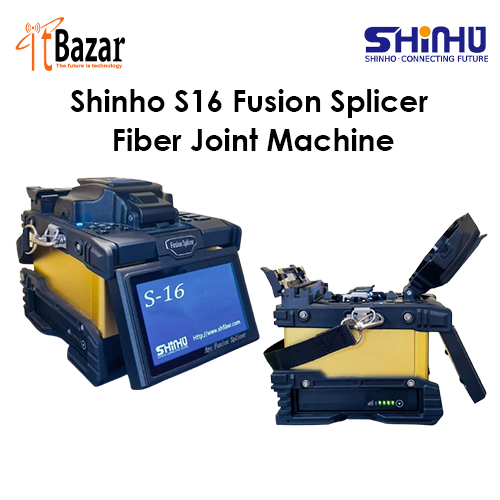

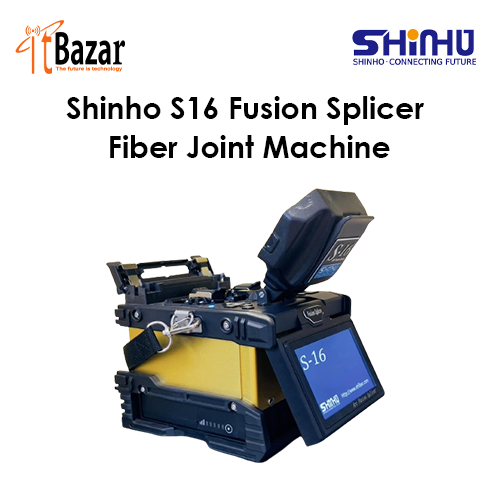

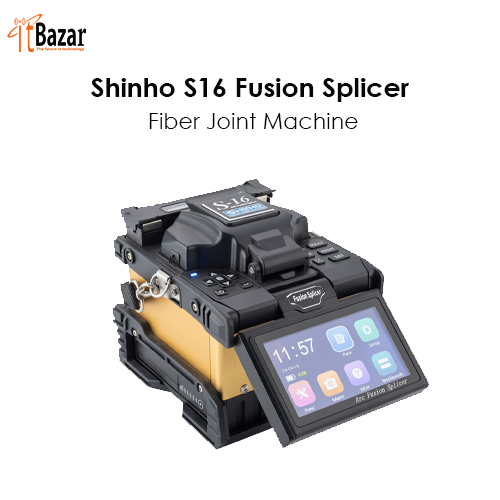

Shinho S16 Fusion Splicer Fiber Joint Machine সিনহো  এস ১৬ ফাইবার জয়েন্ট মেশিন

Shinho S-16 FTTX/FTTH Multifunction Fusion Splicer Fiber Splicing Machine

S-16 fusion splicer is new model to the market, it has faster and more stable performance and low fusion loss. It uses the PAS digital alignment technology. It is specially designed for fiber optical newwork projects installtation and maintaining. Its new  industrial design also makes it very robust, anti-shock, anti-dust and waterproof. It could perform well even in cold/hot/windy/rainy weather. S-16 could splice naked fiber, drop cabl, patch cords etc.

Features

* 6s for splicing and 18s for heating

* Core to core alignment technology

* Anti-shock, Anti-dust and waterproof

* Automatic ARC value & position calibration

* USB port for software updating and data records exporting

* 5800mAh Li-battery, more than 220 cycles splicing&heating

 * Multi-function holder clamps, apply to bare fiber,pigtail,patch cords,drop cable etc.

Specifications

Applicable fiber SM(G.652), MM(G.651), DS(G.653), NZDS(G.655), others(including G.657)

Fiber count Single

Applicable fiber dimensions Cladding diameter: 80 -150μm, Coating diameter: 160 -900μm

Typical splice loss 0.02dB(SM), 0.01dB(MM), 0.04dB(DS), 0.04dB(NZDS)

Return loss >60db

Fiber cleaved length 10-16mm (coating diameter< 250μm ), 16mm(coating diameter: 250-1000μm )

Splicing program 40 groups

Operate mode Manual, Automatic

Auto-heating Available

Typical splicing time 6 seconds

Tube heating time 18 seconds for 60mm and 40mm shrinkable sleeves

Fiber view magnification 250X(X or Y view), 125X(X and Y view)

Viewing method and display 2 CMOS cameras, 4.3 inch color LCD monitor

Storage of splice result 4000 results

Loss evaluation Available

Tension test 1.8-2.2N

Interface GUI menu interface, easier operation

Battery capacity 5800mAh, typical 250 cycles(splice and tube heat), pluggable inner Li-battery

Power supply Adaptor, input: AC100-240V(50/60HZ)

Electrode life More than 4000 ARC discharges, can be replaced conveniently

Terminals USB 2.0 port, for uploading splice results and upgrading software

Operating condition Altitude: 0-5000m, Humidity: 0-95%, Temperature: -10ºC~+50ºC;Wind speed: max 15m/s

Dimension 149mm(L)x120mm(W)x127mm(H)

Weight 2.20kg including battery
