Server Rail Kit Rack Mount
Inhouse product

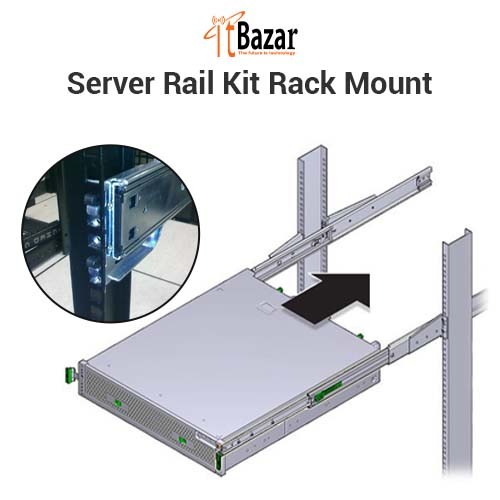

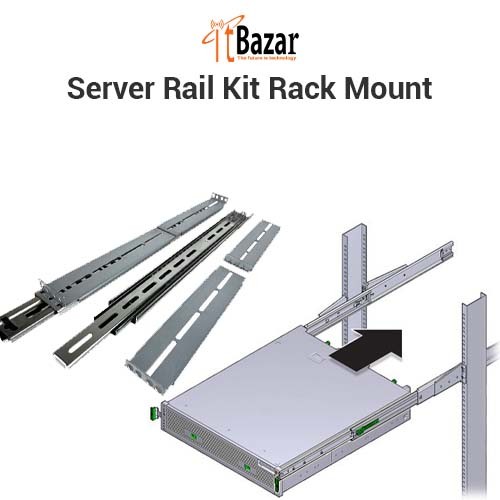

Server Rail Kit Rack Mount
Adjustable mounting depth for rear posts from 18” to 25”
Slide length of 18” plus an additional 18” when slide is extended
The TP1821 rails are rated for 90 lbs maximum load capacity
Suitable for 2U to 8U mounted device height with universal assembly holes
The mounted device has to be a minimum of 10” in length
TIP: For more space (wide) install ears (L bracket) inside (behind) the vertical rack U post (not to wrap ears around the post) and reverse mount cage nuts (screw it from the inside) so the mounting bracket flush even with the end of the U-post
The device mounted on the rails can be quickly detached using the plastic handle
