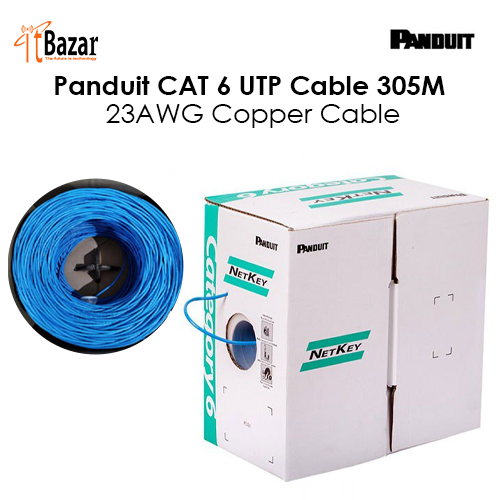

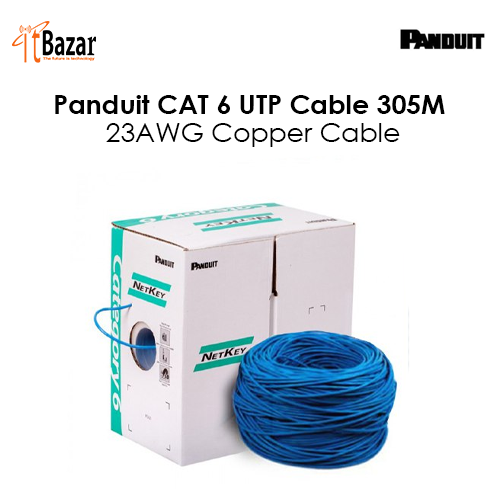

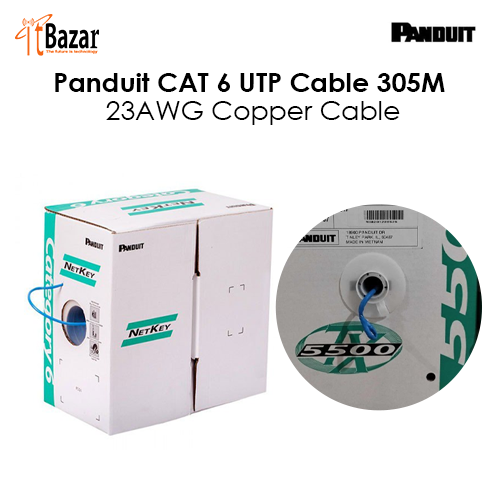

Panduit CAT6 UTP Cable 305M 23AWG Copper Cable
Inhouse product
Panduit CAT6 UTP Cable 305M 23AWG Copper Cable পানডুইট ক্যাট ৬ নেটওয়ার্কিং ক্যাবল। পিওর কপার ক্যাবল
23 AWG solid copper covered
Electrical performance: Certified channel performance in a 4-connector configuration up to
100 meters and meets ANSI/TIA-568-C.2 Category 6 and ISO
11801 Class E standards at swept frequencies up to 250MHz
Conductors/insulators: Plenum – 23 AWG solid copper covered by FEP/polyolefin insulation
Riser – 23 AWG solid copper covered by polyolefin insulation
Flame rating: Plenum – NFPA 262
Riser – UL1666
PoE compliance: Meets IEEE 802.3af and IEEE 802.3at for PoE applications
Installation tension: 25 lbf (110N) maximum
Temperature rating: 32°F to 122°F (0°C to 50°C) during installation
-4°F to 167°F (-20°C to 75°C) during operation (Riser)
-4°F to 140°F (-20°C to 60°C) during operation (Plenum)
Cable jacket: Plenum – low smoke, flame-retardant PVC
Riser – flame-retardant PVC
Cable diameter: Plenum – 0.224 in. (5.7mm) nominal
Riser – 0.210 in. (5.3mm) nominal
Cable weight: Plenum – 29 lbs./1000 ft. (13 kg/305m)
Riser – 22 lbs./1000 ft. (10 kg/305m)
Packaging: 1000 ft. (305m) in an easy payout carton
Package tested to ISTA Procedure1A
