Mikrotik RB951Ui-2HnD
Inhouse product
Mikrotik RB951Ui-2HnD

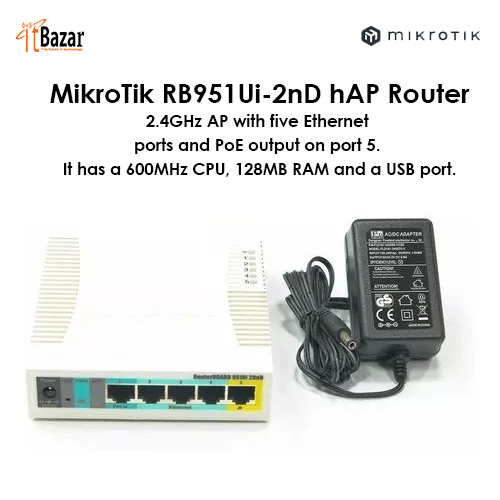

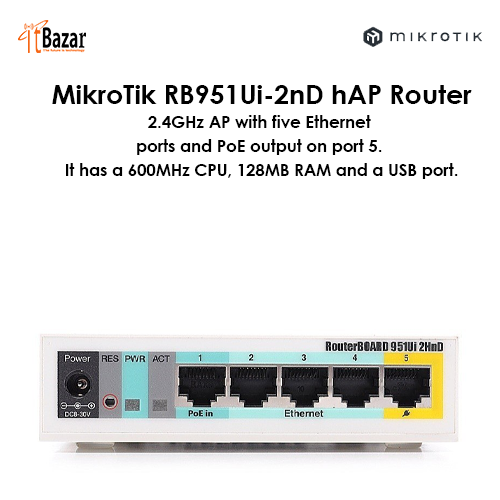

2.4GHz AP with five Ethernet ports and PoE output on port 5. It has a 600MHz CPU, 128MB RAM and a USB port.
The RB951Ui-2HnD is a wireless SOHO AP with a new generation Atheros CPU and more processing power. It has five Ethernet ports, one USB 2.0 port and a high power 2.4GHz 802.11b/g/n wireless AP with antennas built in.
It has a 600MHz CPU,128MB of RAM and PoE output function for port #5 - it can power other PoE capable devices with the same voltage as applied to the unit. Maximum load on the port is 500mA.
Package contains RouterBOARD 951Ui-2HnD in a plastic case and power adapter.
Specifications
Details
Product code RB951Ui-2HnD
Architecture MIPSBE
CPU AR9344
CPU core count 1
CPU nominal frequency 600 MHz
Dimensions 113x138x29mm
RouterOS license 4
Operating System
Size of RAM 128 MB
Storage size 128 MB
Storage type NAND
MTBF Approximately 100'000 hours at 25C
Tested ambient temperature -20C +60C
Suggested price $59.95
Wireless capabilities
Details
Wireless 2.4 GHz Max data rate 300 Mbit/s
Wireless 2.4 GHz number of chains 2
Wireless 2.4 GHz standards 802.11b/g/n
Antenna gain dBi for 2.4 GHz 2.5
Wireless 2.4 GHz chip model AR9344
Wireless 2.4 GHz generation Wi-Fi 4
Ethernet
Details
10/100 Ethernet ports 5
Peripherals
Details
Number of USB ports 1
USB Power Reset Yes
USB slot type USB type A
Max USB current (A) 1
Powering
Details
Number of DC inputs 2 (PoE-IN, DC jack)
DC jack input Voltage 8-30 V
Max power consumption 24 W
Max power consumption without attachments 7 W
Cooling type Passive
PoE in Passive PoE
PoE in input Voltage 8-30 V
PoE-out
Details
PoE-out ports Ether5
PoE out Passive PoE
Max out per port output (input 18-30 V) 500 mA
Max total out (A) 500 mA
Certification & Approvals
Details
Certification CE, FCC, IC, EAC, ROHS
IP IP20
Other
Details
Beeper Yes
Wireless specifications
2.4 GHz Transmit (dBm) Receive Sensitivity
6MBit/s 30 -96
54MBit/s 25 -80
MCS0 30 -96
MCS7 23 -78
