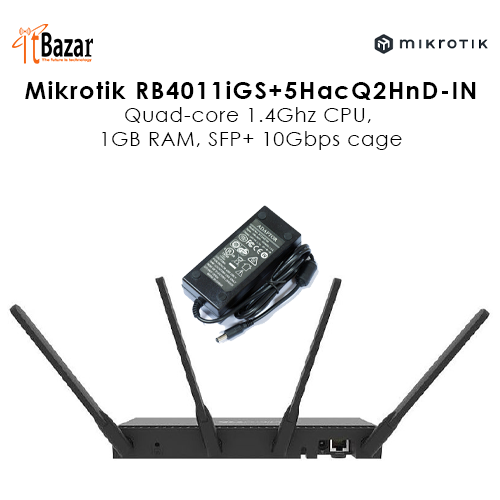

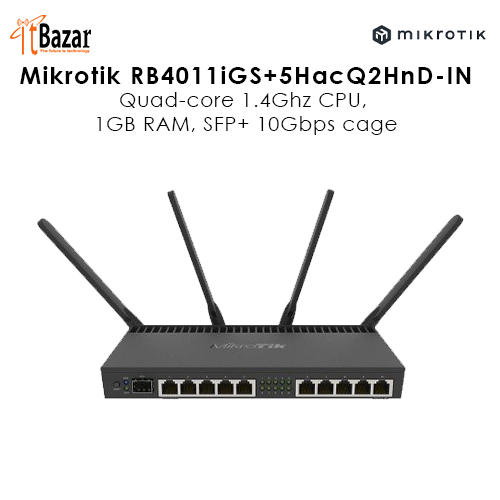

Mikrotik RB4011iGS+5HacQ2HnD-IN

RB4011 series - amazingly powerful routers with ten Gigabit ports, SFP+ 10Gbps interface and IPsec hardware acceleration for a great price!

The RB4011 uses a quad core Cortex A15 CPU, same as in our carrier grade RB1100AHx4 unit. The unit is equipped with 1GB of RAM, can provide PoE output on port #10 and comes with a compact and professional looking solid metal enclosure in matte black.

RB4011iGS+5HacQ2HnD-IN (WiFi model) is dual band, four chain unit with a supported data rate of up to 1733 Mbps in 5GHz. For legacy devices, the unit also has a dual chain 2GHz wireless card installed in miniPCI-e slot.

We have two versions available.

RB4011iGS+5HacQ2HnD-IN-US (USA) is factory locked for 2412-2462MHz, 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.

RB4011iGS+5HacQ2HnD-IN (International) supports 2412-2484MHz and 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).

Specifications

Details

Product code RB4011iGS+5HacQ2HnD-IN

Architecture ARM 32bit

CPU AL21400

CPU core count 4

CPU nominal frequency auto (533 - 1900) MHz

Switch chip model RTL8367SB

Dimensions 228 x 120 x 30 mm

RouterOS license 5

Operating System rs

Size of RAM 1 GB

Storage size 512 MB

Storage type NAND

MTBF Approximately 200'000 hours at 25C

Tested ambient temperature -40°C to 45°C

IPsec hardware acceleration Yes

Suggested price $275.00

Wireless capabilities

Details

Wireless 5 GHz Max data rate 1733 Mbit/s

Wireless 5 GHz number of chains 4

Wireless 5 GHz standards 802.11a/n/ac

Antenna gain dBi for 5 GHz 3

Wireless 5 GHz chip model QCA9984

Wireless 5 GHz generation Wi-Fi 5

Wireless 2.4 GHz Max data rate 300 Mbit/s

Wireless 2.4 GHz number of chains 2

Wireless 2.4 GHz standards 802.11b/g/n

Antenna gain dBi for 2.4 GHz 3

Wireless 2.4 GHz chip model R11e-2HnD

Wireless 2.4 GHz generation Wi-Fi 4

WiFi speed AC2000

Ethernet

Details

10/100/1000 Ethernet ports 10

Fiber

Details

SFP+ ports 1

Peripherals

Details

MiniPCI-e slots 1

Serial console port RJ45

Powering

Details

Number of DC inputs 2 (DC jack, PoE-IN)

DC jack input Voltage 12-57 V

Max power consumption 44 W

Max power consumption without attachments 23 W

Cooling type Passive

PoE in Passive PoE

PoE in input Voltage 18-57 V

PoE-out

Details

PoE-out ports Ether10

PoE out Passive PoE up to 57V

Max out per port output (input 18-30 V) 600 mA

Max out per port output (input 30-57 V) 420 mA

Max total out (A) 600 mA

Certification & Approvals

Details

Certification CE, FCC, IC, EAC, ROHS

IP IP20

Other

Details

PCB temperature monitor Yes

Voltage Monitor Yes

Wireless specifications

5 GHz Transmit (dBm) Receive Sensitivity

6MBit/s 33 -96

54MBit/s 29 -81

MCS0 33 -96

MCS7 28 -77

MCS9 26 -72

2.4 GHz Transmit (dBm) Receive Sensitivity

1MBit/s 28 -100

11MBit/s 28 -94

6MBit/s 29 -96

54MBit/s 25 -80

MCS0 26 -96

MCS7 24 -79
