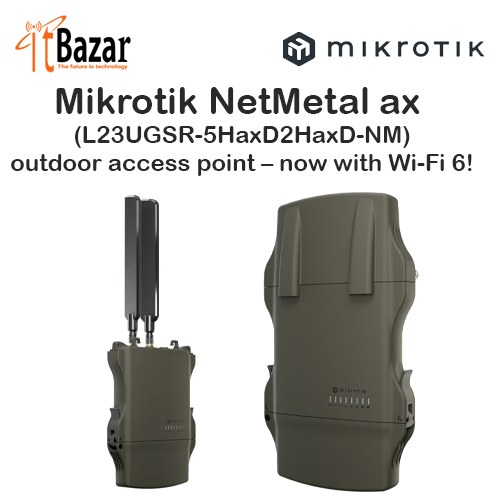

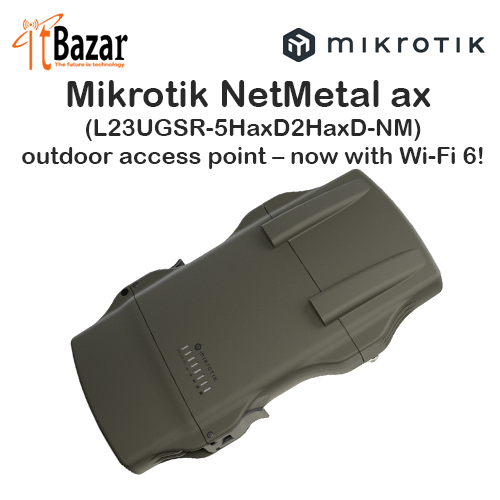

Mikrotik Outdoor Ap NetMetal ax L23UGSR-5HaxD2HaxD-NM

The Mars rover of networking. Our toughest long-range outdoor access point – now with Wi-Fi 6!

Meet one of your most versatile companions: the NetMetal ax – a powerful long-range outdoor access point that thrives in any environment. Designed for extra durability, it can be installed almost anywhere with ease – you can open and close the case with one hand. The rated IP66 protection will keep the device safe from dust and powerful water jets - in damp attics and elevator shafts, bustling docks, or coastal tower structures. No terrain is too rough for the NetMetal ax – the Mars rover of ne

*It’s important to note that while longer links are feasible, their reliability may vary. Additionally, the distance achievable greatly depends on the antenna selected for use.

Specifications

Details

Product code L23UGSR-5HaxD2HaxD-NM

Architecture ARM

CPU IPQ-5010

CPU core count 2

CPU nominal frequency 800 MHz

RouterOS license 4

Operating System Os7

Size of RAM 256 MB

Storage size 128 MB

Storage type NAND

MTBF Approximately 200'000 hours at 25C

Tested ambient temperature -40°C to 70°C

Suggested price $169.00

Powering

Details

Number of DC inputs 2 (DC jack, PoE-IN)

DC jack input Voltage 12-28 V

Max power consumption 25 W

Max power consumption without attachments 12 W

Cooling type Passive

PoE in Passive PoE

PoE in input Voltage 18-28 V

Wireless specifications

Details

Wireless 2.4 GHz Max data rate 574 Mbit/s

Wireless 2.4 GHz number of chains 2

Wireless 2.4 GHz standards 802.11b/g/n/ax

Wireless 2.4 GHz chip model IPQ-5010

Wireless 2.4 GHz generation Wi-Fi 6

Wireless 5 GHz Max data rate 2400 Mbit/s

Wireless 5 GHz number of chains 2

Wireless 5 GHz standards 802.11a/n/ac/ax

Wireless 5 GHz chip model QCN-6102

Wireless 5 GHz generation Wi-Fi 6

Ethernet

Details

10/100/1000 Ethernet ports 1

Fiber

Details

SFP ports 1 (2.5G supported)

Peripherals

Details

Number of SIM slots 1 Modem (Nano SIM)

MiniPCI-e slots 1

Number of USB ports 1

USB Power Reset Yes

USB slot type USB type A

Max USB current (A) 1.5

Other

Details

PCB temperature monitor Yes

Voltage Monitor Yes

Beeper Yes
