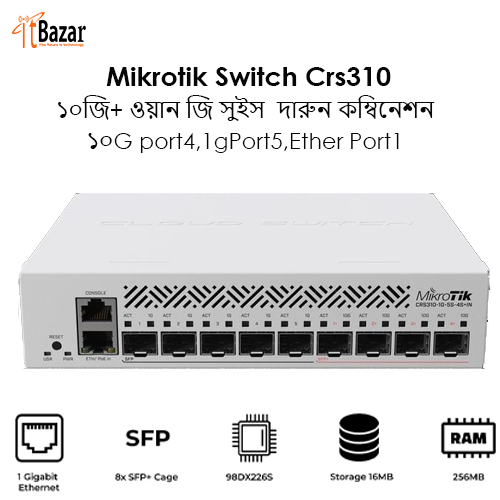

Mikrotik CRS310-1G-5S-4S+IN 10G SWITCH
মাইক্রোটিক ১০জি সুইচ। ১০জি এবং ১জি দারুন কম্বিনেশন।

10 Gigabit fibre connectivity way over a 100 meters – for small offices or ISPs. Hardware offloaded VLAN-filtering and even some L3 routing on a budget!

This switch is an indoor variation of the prominent netFiber 9 switch – used by many small and medium ISPs for reliable 10 Gigabit fibre connections stretching over a 100 meters. With five 1G SFP ports, four 10G SFP+ ports, and an additional Gigabit Ethernet port, this is the perfect upgrade for existing CRS212 setups. You’re getting the modern ARM v7 CPU, 256 MB of RAM, and better cooling. The new Marvell switch-chips bring phenomenal performance to the table!

The Gigabit Ethernet port has a direct connection to the switch chip – so you can enjoy full gigabit speed there. And it supports PoE-in, giving you an additional powering option in tricky spots.

You can mount this switch in a standard 1U rack to keep everything organized. And it has all the power you would expect from a rackmount device: CRS310 supports hardware offloaded VLAN- filtering. And even some hardware offloaded Layer-3 routing.

CRS310-1G-5S-4S+IN is a fantastic tool for anyone working with indoor connections over 100 meters while keeping data loss and ping low. Optical fiber can be a great alternative to copper if you are worried about electromagnetic interference, tampering or eavesdropping.

Specifications

Details

Product code CRS310-1G-5S-4S+IN

Architecture ARM 32bit

CPU 98DX226S

CPU core count 1

CPU nominal frequency 800 MHz

Switch chip model 98DX226S

Dimensions 200 x 166 x 44 mm

RouterOS license 5

Operating System ROUTER OS /SWITCH OS

Size of RAM 256 MB

Storage size 16 MB

Storage type FLASH

MTBF Approximately 200'000 hours at 25C

Tested ambient temperature -40°C to 70°C

Powering

Details

Number of DC inputs 2 (DC jack, PoE-IN)

DC jack input Voltage 18-57 V

Max power consumption 20 W

Max power consumption without attachments 8 W

Cooling type 1 fan

PoE in 802.3af/at

PoE in input Voltage 18-57 V

Ethernet

Details

10/100/1000 Ethernet ports 1

Fiber

Details

SFP ports 5

SFP+ ports 4

Peripherals

Details

Serial console port RJ45

Other

Details

CPU temperature monitor Yes

PCB temperature monitor Yes

Voltage Monitor Yes

Certification & Approvals

Details

Certification CE, EAC, ROHS

IP 20
