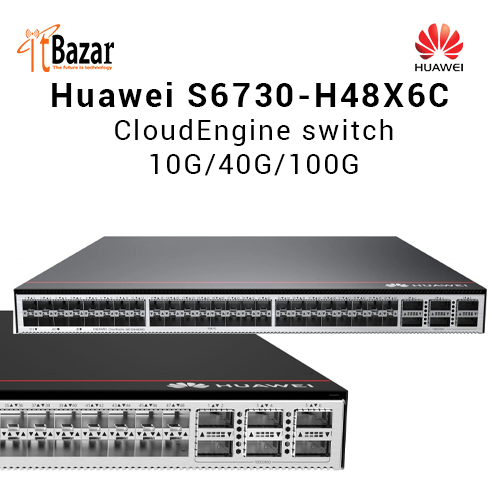

Huawei S6730-H48X6C 100G Switch 10G/40G/100G CloudEngine switch
Inhouse product
Huawei S6730-H48X6C 100G Switch 10G/40G/100G CloudEngine switch
Huawei S6730-H48X6C is an efficient switch from the CloudEngine series. It is equipped with 48 SFP + slots with a bandwidth of 10 Gb / s each and 6 QSFP28 slots with a bandwidth of 40/100 Gb / s. The device is licensed with a limit of 40 Gb / s per QSFP port. The set includes one AC adapter with a voltage range of 100 - 240 V (600 W, max. 8 A). The switch can be successfully used by Internet operators, on school campuses or various types of institutions.
The offered product supports advanced multicast support, including PIM-SM, PIM-DM, PIM-SSM and Multicast VPN. It also has extensive Layer 3 features such as RIP v1 / 2, OSPF, OSPFv3, IS-IS, IS-ISv6, BGP and BGP4 +. An additional advantage is the numerous security measures, detects non-standard and potentially dangerous traffic, analyzes threats in encrypted traffic (Encrypted Communication Analytics), and can cooperate with the Huawei Cybersecurity Intelligence System (CIS).
An additional advantage is the possibility of virtual stacking of multiple switches using iStack. The device supports VXLAN-based virtualization, allows you to connect wireless and wired networks. It can handle up to 1024 access points in one network, acts as their controller (including domain management or configuration templates).
S6730-H48X6C High-Density 10GE Access
Deliver industry-leading 10GE port density, with a single switch supporting up to 48 line-rate 10GE ports, ideal for Wi-Fi 6 upstream transmission.
Specifications
48 x 10 Gig SFP+, 6 x 100 Gig QSFP28

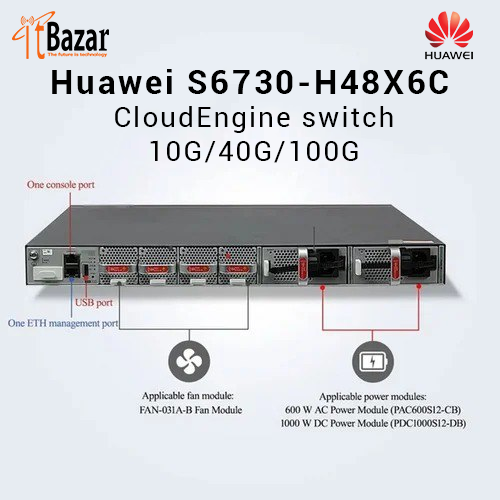

Dual pluggable power modules, 1+1 power backup
Forwarding performance: 480 Mpps
Switching capacity: 2.16Tbps/2.4Tbps
NOTE
100GE QSFP28 interfaces support 40GE and 100GE optical module auto-sensing.
The default uplink port is 40GE, which needs to be upgraded to 100GE through the
license.
