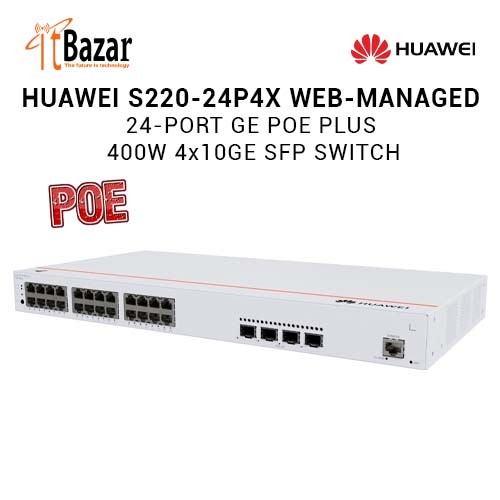

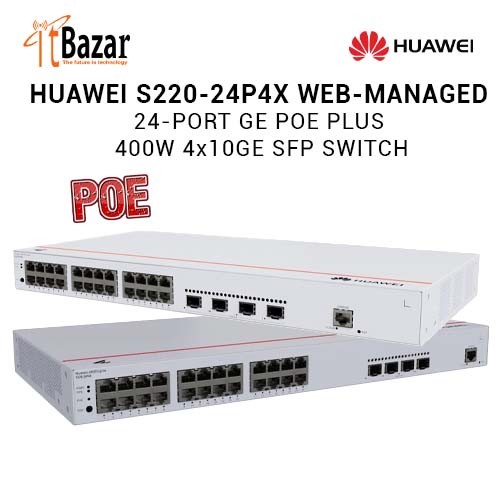

Huawei PoE Switch S220-24P4X 28 Port Managed eKit SMB Switch

The Huawei S220-24P4X  fixed Ethernet switches are expertly designed to seamlessly integrate access and transmission functions within enterprise networks.

The Huawei S220-24P4X fixed Ethernet switches are expertly designed to seamlessly integrate access and transmission functions within enterprise networks. Renowned for their dependable access and exceptional transmission quality, these switches stand out as an ideal choice for businesses seeking efficient and resilient network solutions. These switches are built on a unified hardware platform, featuring a complete system that includes the chassis, power module, fan module, and Switch Control Unit (SCU), all working together to ensure cohesive and reliable performance.

Technical Specifications

Description S220-24P4X (24*10/100/1000BASE-T ports(400W PoE+), 4*10GE SFP+ ports, built-in AC power)

Part Number 98012376

Model S220-24P4X

First supported version V600R023C00

Dimensions without packaging (H x W x D) [mm(in.)] Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.66 in.)

Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 227.0 mm (1.72 in. x 17.4 in. x 8.94 in.)

Dimensions with packaging (H x W x D) [mm(in.)] 90.0 mm x 550.0 mm x 360.0 mm (3.54 in. x 21.65 in. x 14.17 in.)

Chassis height [U] 1 U

Chassis material Metal

Weight without packaging [kg(lb)] 2.92 kg (6.44 lb)

Weight with packaging [kg(lb)] 3.79 kg (8.36 lb)

Typical power consumption [W] 37.12 W

Typical heat dissipation [BTU/hour] 126.65 BTU/hour

Maximum power consumption [W] Without PoE: 44.35 W

Full PoE load: 485.91 W (PoE: 400 W)

Maximum heat dissipation [BTU/hour] Without PoE: 151.32

Full PoE load: 1657.92

Static power consumption [W] 27.07 W

MTBF [years] 60.18 years

MTTR [hours] 2 hours

Availability > 0.99999

Noise at normal temperature (acoustic power) [dB(A)] 49.3 dB(A)

Noise at normal temperature (acoustic pressure) [dB(A)] 37.3 dB(A)

Number of card slots 0

Number of power slots 0

Number of fans modules 2

Switching capacity To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel.

Packet forwarding rate To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel.

Uplink ports 4 x 10GE SFP+ ports

Downlink ports 24 x 10/100/1000BASE-T ports (400 W, PoE+)

Redundant power supply Not supported

Long-term operating temperature [°C(°F)] -5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5905.44 ft.)

Restriction on the operating temperature variation rate [°C(°F)] When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).

Devices cannot start when the temperature is lower than 0°C (32°F).

Storage temperature [°C(°F)] –40°C to +70°C (–40°F to +158°F)

Long-term operating relative humidity [RH] 5% RH to 95% RH (non-condensing)

Long-term operating altitude [m(ft.)] 0–5000 m (0–16404 ft.)

Storage altitude [m(ft.)] 0-5000 m (0-16404 ft.)

Power supply mode AC built-in

Rated input voltage [V] AC input: 100 V AC to 240 V AC, 50/60 Hz

High-voltage DC input: 240 V DC

Input voltage range [V] AC input: 90 V AC to 290 V AC; 45 Hz to 65 Hz

High-voltage DC input: 190 V DC to 290 V DC

Maximum input current [A] 6 A

Memory 2 GB

Flash memory Physical space: 1 GB

Console port RJ45

Eth Management port Not supported

USB Not supported

RTC Not supported

RPS input Not supported

Service port surge protection [kV] Common mode: ±7 kV

Power supply surge protection [kV] Differential mode: ±6 kV; common mode: ±6 kV

Ingress protection level (dustproof/waterproof) IP20

Types of fans Built-in

Heat dissipation mode Air cooling for heat dissipation, intelligent fan speed adjustment

Airflow direction Air intake from left and front, air exhaustion from right

PoE Supported

Certification EMC certification

Safety certification

Manufacturing certification
