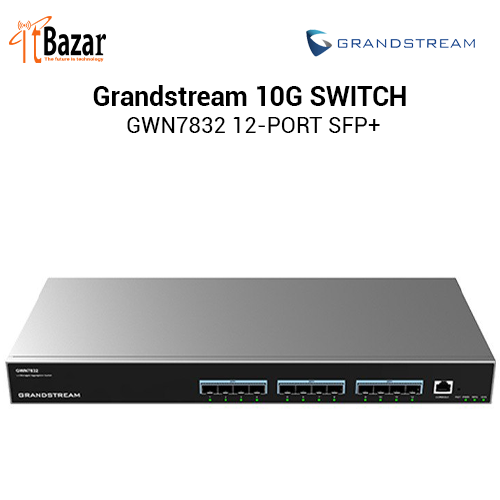

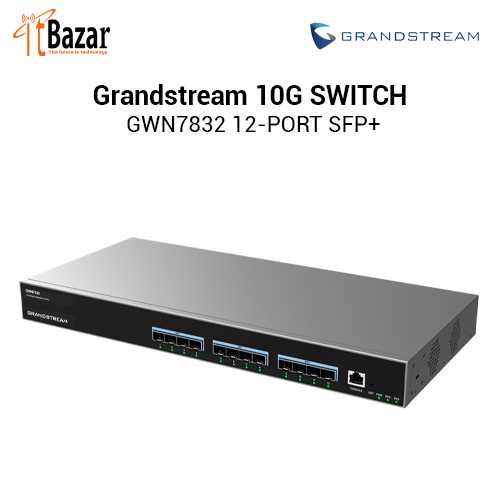

Grandstream 10G SWITCH GWN7832 12-PORT SFP+ গ্রান্ডস্ট্রিম ১০জি সুইচ ১২পোর্ট

The GWN7830 series are Layer 3 aggregation switches that allow enterprises to build scalable, secure, high-performance, and smart business networks that are fully manageable and support maximum capacity.

2/4 Gigabit Ethernet ports, 6/24 Gigabit SFP ports, and  4/12 10Gigabit SFP+ ports

Supports deployment in IPv6 and IPv4 networks

ARP Inspection, IP Source Guard, DoS protection, port security & DHCP snooping

Embedded controller to manage switch; GWN.Cloud and GWN Manager, Grandstream’s cloud and on-premise network management platform

Built-in QoS allows for prioritization of network traffic

Contact Sales

Specs

Network Protocols

IPv4, IPv6, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1p, IEEE 802.1Q, IEEE 802.3AB, IEEE 802.1p, IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x

Gigabit Ethernet Ports 2

SFP Ports 6

SFP+ 10Gigabit Ports 4

Total Non-Blocking Throughput 48Gbps

Switching Capability 96Gbps

Forwarding Rate 71.424Mpps

QoS

Port priority

Priority mapping

Queue scheduling, including SP, WRR, WFQ, SP-WRR, and SP-WFQ

Traffic shaping

Rate limit

Switching, Routing, and Multicast

16K static, dynamic, and filtering MAC addresses

4K VLANs, port-based VLAN, IEEE 802.1Q VLAN tagging, voice VLAN

6 Link Aggregation

2K ACL for Ethernet, IPv4, and IPv6

VLAN virtual interface

GVRP (pending)

Spanning tree, 32 instances for STP/RSTP/MSTP

Static routing

Dynamic routing, including RIP, RIPng, OSPF and OSPFv3

Policy routing (pending)

IGMP Snooping

MLD Snooping

MVR (pending)

Security

User hierarchical management and password protection, HTTPS, SSH, Telnet

802.1X authentication

AAA authentication including RADIUS, TACACS+

Storm control

Port isolation, port security, sticky MAC

Filtering MAC address

IP source guard, DoS attack prevention, ARP inspection

DHCP Snooping

Loop protection including BPDU protection, root protection(pending) and loopback protection(pending)

Kensington Security Slot (Kensington Lock) support
