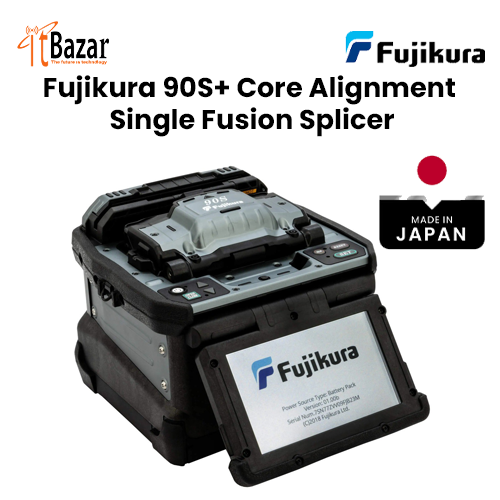

Fujikura Splicer 90S+ Core Alignment Fusion Splicer
Inhouse product
Fujikura Splicer 90S+ Core Alignment Fusion Splicer
The Fujikura 90S+ is a core alignment fusion splicer, setting a new standard in the market for fusion splicing. The 90S+ is packed with a whole host of new and enhanced features, specifically developed to enable faster splice cycle times with higher precision. Advanced image processing technology. Fiber discrimination function.
The faster automated features.
The tool can connect two cleavers simultaneously.
Blade life management: the device displays the remaining blade life, informs about blade height and position change, and when new blade is required.
Battery life increased up to 500 recharge cycles. Increased electrode lifetime – up to 5000 splicing cycles with one set.
Fujikura 90S+ Kit specifications:
Splicing time: 7-9 sec (SM FAST mode).
Heat time: 13-15 sec (for 60 mm sleeves).
The faster automated features.
Easy fiber protection sleeve positioning.
The sheath clamp is compatible with loose tube fiber.
Preinstalled operation manual.
Battery life increased up to 500 recharge cycles.
Increased electrode lifetime – up to 5000 splicing cycles with one set.
Dimensions: 170 × 173 × 150 mm.
Weight: 2.8 kg (with battery).
Package Contents
Fusion Splicer Fujikura 90S+ — 1 pc.
Battery (BTR-15) — 1 pc.
AC Adaptor (ADC-20) — 1 pc.
AC Power Cord (ACC-14, 15, 16 or 17) — 1 pc.
USB Cable (USB-01) — 1 pc.
Fusion Splicer Strap (ST-02) — 1 pc.
Spare Electrodes (ELCT-16B) — 1 set.
Fiber Holder Set Plate (SP-03) — 1 set.
Carrying Case (CC-39) — 1 pc.
Work Trays:
Left (WT-09L) — 1 pc
Right (WT-09R) — 1 pc.
J-Plate (JP-09) — 1 pc.
Tripod Screw (TS-03) — 1 pc.
Carrying Case Strap (ST-03) — 1 pc.
Alcohol Dispenser (AP-02) — 1 pc.
Quick Reference Guide (QRG-02-E, C or J) — 1 pc.
Single Fiber Stripper (SS-03 or SS-01) — 1 pc.
