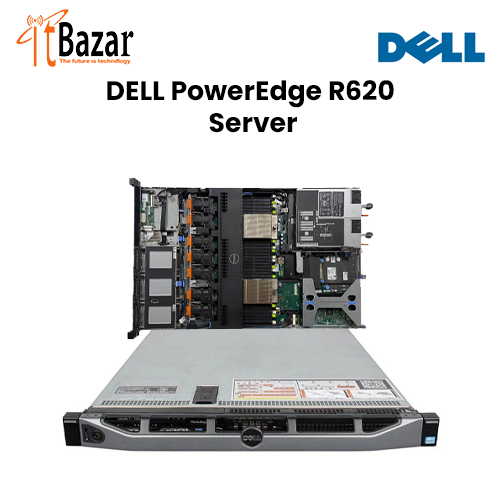

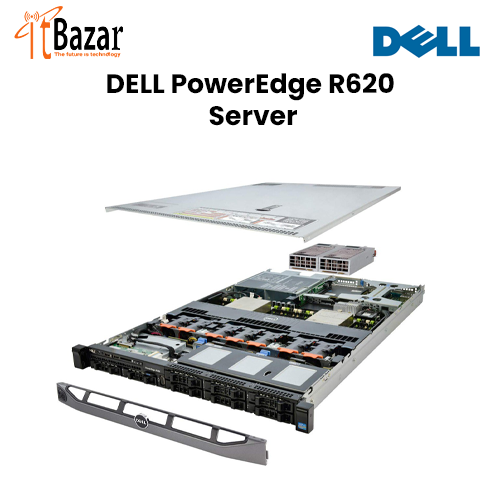

DELL SERVER R620 PowerEdge RACK MOUNT SERVER

The Dell PowerEdge R620 is packed with power and performance in a low-energy consumption, low-profile, rack mount design. Built with the latest Intel Xeon processor, this 2 socket, 1U rack server has 3 integrated PCIe 3.0 expansion slots. The R720 takes up minimal space by using high performance virtualization to consolidate and improve server utilization. Additional features and options include 24 DIMMs of memory, GPU card options, select network adapter, as well as 10 Gigabit ethernet bandwidth for faster connection. It can act as a great web services server by its ability to run many virtual machines in a scalable fashion.

Form factor 1U rack

Processors Intel® Xeon® processor E5-2600 or E5-2600 v2 product family

Processor sockets 2

Internal interconnect 2 x Intel QuickPath Interconnect (QPI) links: 6.4GT/s, 7.2GT/s, 8.0GT/s

Cache 2.5MB per core; core options: 4, 6, 8, 10, 12

Chipset Intel C602

Memory1 Up to 768GB (24 DIMM slots): 2GB/4GB/8GB/16GB/32GB/64GB DDR3 up to 1866MT/s

I/O slots

3 PCIe slots: (10-drive-bay configuration is available only with the 3 PCIe slot option)

Two x16 slots with x16 bandwidth, half-height, half-length

One x16 slot with x8 bandwidth, half-height, half-length

or

2 PCIe slots:

One x16 slot with x16 bandwidth, full-height, 3/4 length

One x16 slot with x16 bandwidth (or x8 with one processor only), half-height, half-length

RAID controller

Internal controllers:

PERC S110 (SW RAID)

PERC H310

PERC H710

PERC H710P

External HBAs (RAID):

PERC H810

External HBAs (non-RAID):

6Gbps SAS HBA

LSI SAS 9207-8i 6Gb/s SAS

Drive bays Up to ten 2.5” hot-plug SAS, SATA, or SSD or up to four hot-plug 2.5” SAS, SATA, or SSD + two PCIe SSD

Hard drives Hard drive options:

2.5” SSD, SAS HDD

3.5” SAS HDD, Nearline SAS HDD, SATA HDD

Self-encrypting drives available

Embedded NIC

Broadcom® 5720 quad-port 1GbE Base-T (no TOE or iSCSI offload)

Broadcom 57800S dual-port 10GbE Base-T with 2 x 1GbE (TOE and iSCSI offload available on 10GbE ports

Broadcom 57800S dual-port 10GbE SFP+ with 2 x 1GbE (TOE and iSCSI offload available on 10GbE ports

Broadcom 57840S quad-port 10GbE SFP+ Rack NDC (NPAR1.0, SRIOV, DCB, iSCSI and FCoE offloads and CEM) Intel

I350 quad-port 1GbE Base-T (no TOE or iSCSI offload)

Intel X540 dual-port 10GbE Bse-T with 2 x 1GbE (FCoE capability enabled on the 10GbE ports)

Power supplies Titanium efficiency, hot-plug redundant 750W AC power supply; auto-ranging Platinum efficiency, hot-plug

redundant 495W, 750W or 1100W AC power supply; 1100W DC power supply

Availability

High-efficiency, hot-plug, redundant power supplies; hot-plug hard drives; TPM; dual internal SD support;

hot-plug, redundant fans; optional bezel; information tag; ECC memory; interactive LCD screen; extended thermal

support; ENERGY STAR® compliant; switch independent partitioning

Remote management

iDRAC7 with Lifecycle Controller

iDRAC7 Express (default), iDRAC7 Enterprise (upgrade option),

8GB vFlash media (upgrade option), 16GB vFlash media (upgrade option)

Systems management

IPMI 2.0 compliant

Dell OpenManage Essentials

Dell OpenManage Mobile

Dell OpenManage Power Center

Dell OpenManage Integrations:

• Dell OpenManage Integration Suite for Microsoft

System Center

• Dell OpenManage Integration for VMware® vCenter

Dell OpenManage Connections:

• HP Operations Manager, IBM Tivoli® Netcool®, and CA

Network and Systems Management

• Dell OpenManage Plug-in for Oracle® Database

Manager

Rack support

ReadyRails™ II sliding rails for tool-less mounting in 4-post racks with square or unthreaded round holes or tooled

mounting in 4-post threaded hole racks, with support for optional tool-less cable management arm. ReadyRails static

rails for tool-less mounting in 4-post racks with square or unthreaded round holes or tooled mounting in 4-post

threaded and 2-post (Telco) racks.

Operating systems

Microsoft Windows® Server® 2012 R2 (includes

Hyper-V®)

Microsoft Windows Server 2012 (includes Hyper-V)

Microsoft Windows Server 2008 R2 SP1, x64 (includes

Hyper-V)

Microsoft Windows Small Business Server 2011

Novell® SUSE® Linux Enterprise Server

Red Hat® Enterprise Linux®

Virtualization options:

Citrix® XenServer®

VMware vSphere® ESXi™

Red Hat Enterprise Virtualization®

For more information on the specific versions and

additions, visit Dell.com/OSsupport.

OEM-ready version From bezel to BIOS to packaging, your servers can look and feel as if they were designed and built by you.
