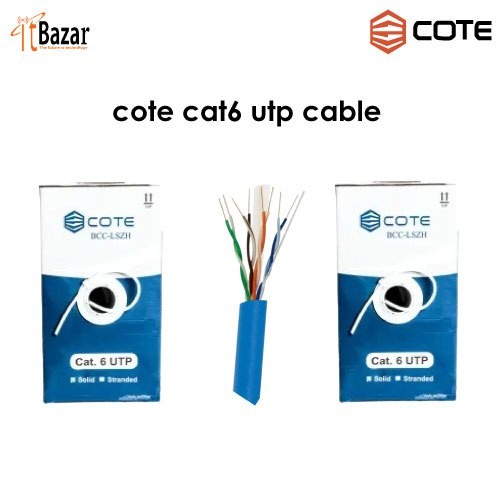

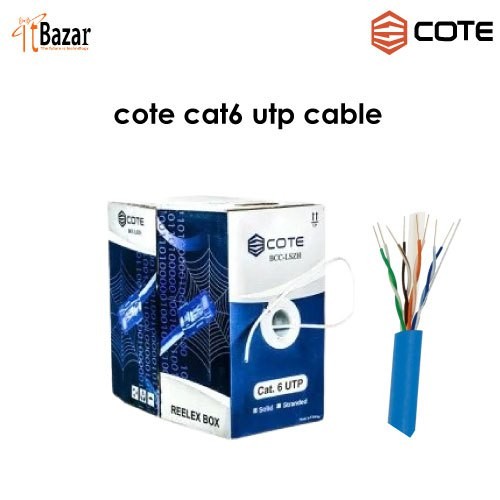

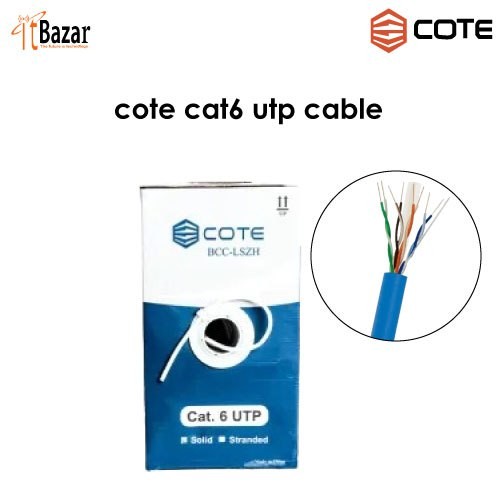

Cote Cat6 UTP Cable Copper Cable
Inhouse product
Cote Cat6 UTP Cable Copper Cable কোট ক্যাট ৬ নেটওয়ার্ক ক্যাবল
Impedance: 1-250Mhz 100±15 Ω Rated Temperature: 75 ImageC
DC Resistance Unbalance (%): Max 2.5 DC Resistance 20 ImageC: 8.4 (ohms/100m)
Pair-to Ground Capacitance Unbalance: 330 (pF/100m) Insultation Resistance: >5000MΩ*Km
Dielectric strength: DC 2500V 2S
Objects Descriptions
Conductor 23AWG, 1 x 0.57 (± 0.007) mm Solid Copper
Insulation Material HDPE
Insulation Thickness 0.22 (± 0.02) mm
Material of Jacket PVC/LSZH
Nominal Diameter 6.5 (±0.2) mm
Total number of Conductor 8
Pair Type 4 x Twisted pairs
Color code IEEE T568 Standard, Gray/Blue
Ripcord Available
Frequency RL (min) IL (max) DOP (max) Delay Skew (max) NEXT (min) PSNEXT (min) ACR-F (min)
(MH)z (dB) (dB/100m) (ns/100m) (ns/100m) (dB) (dB) (dB/100m)
1.0 20.0 2.0 570.0 45.0 74.0 72.0 67.8
4.0 23.0 3.8 552.0 45.0 65.0 63.0 55.7
10.0 25.0 6.0 545.0 45.0 59.0 57.0 47.8
16.0 25.0 7.6 543.0 45.0 56.0 54.0 43.7
20.0 25.0 8.5 542.0 45.0 55.0 53.0 41.7
31.3 23.6 10.7 520.0 45.0 52.0 50.0 37.9
62.5 21.5 15.4 538.0 45.0 47.0 45.0 31.8
100.0 20.1 19.8 537.0 45.0 44.3 42.3 27.8
200.0 18.0 29.0 536.0 45.0 39.7 37.7 21.7
250.0 17.3 32.8 535.0 45.0 38.0 36.0 19.8
Note: The above transmission performance for the 100M, 20±2 °C under the conditions tested
