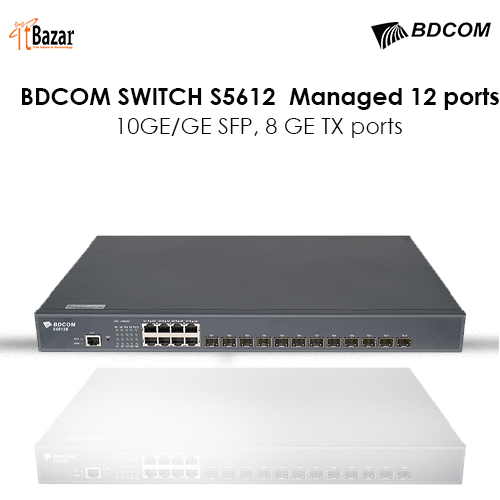

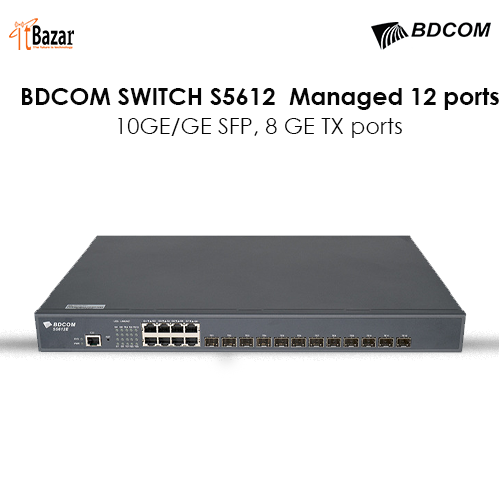

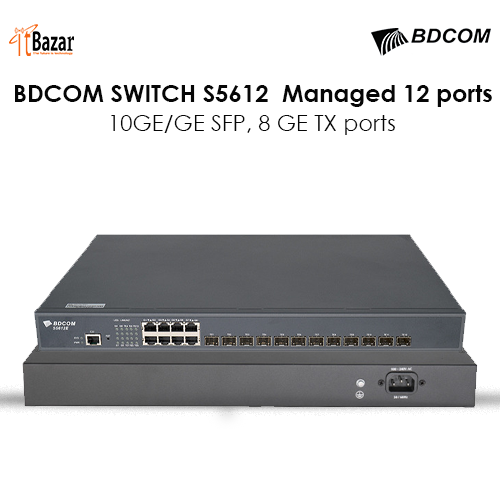

BDCOM SWITCH S5612  Managed 12 ports 10GE/GE SFP, 8 GE TX ports বিডি কম ১০জি  সুইচ

Detail Introduction

The BDCOM S5600 series switch is a new generation of 10G smart switches that Shanghai BDCOM Data Communication Co., Ltd. has launched for operators’ IP metropolitan area networks, government and enterprise networks, Internet cafes, and diskless working environments. S5600 is based on a new generation of high-performance hardware and BDROS software platform with independent intellectual property rights of BDCOM . It supports powerful ACL , flexible QinQ , 1:1 and N:1 VLAN switching, Ethernet OAM , carrier-grade QoS , and industrial-grade 10 Gigabit Ethernet ring. Network and other functions, so that this series of products can meet the application requirements of various complex scenarios.

Main features

Industrial-grade Ethernet ring network function, zero delay, zero packet loss

￭ Support industrial-grade Ethernet ring network protection protocol, protection switching time <50ms, after years of verification by BDCOM in the electric power, rail transit, military industry and other industries, it can achieve the high reliability requirements of zero packet loss.

Carrier Ethernet Switch

￭ Support carrier-grade Ethernet ring network protection protocol, protection switching time <50ms; support STP/RSTP/MSTP protocol, dual-uplink primary and backup link protection, LACP link aggregation and other simple and efficient redundant protection mechanisms to meet carrier-grade High reliability requirements.

￭ The perfect Ethernet OAM mechanism realizes rapid detection and location of faults through real-time monitoring of network operation status.

￭ Powerful ACL function supports access and control of L2~L7 data based on physical port, VLAN, MAC, IP, protocol port number, etc., providing users with flexible and diverse policy control methods.

￭ Support ISSU (In-Service Software Upgrade) business uninterrupted system upgrade to ensure uninterrupted forwarding of user data during system upgrade.

￭ Support rich layer 2 multicast functions, including IGMP-Snooping, user quick leave mechanism and cross-VLAN multicast replication function.

Carrier-level QoS strategy

￭ Supports classification of complex flows based on VLAN, MAC, source address, destination address, IP protocol, priority, etc., and supports re-marking of priority, providing a reliable and effective means for users to optimize services.

￭ Provide flexible bandwidth control strategies, support port-based or flow-based rate limiting functions, and ensure wire-speed forwarding of each port, thereby effectively ensuring the quality of high-quality voice, video, and data network services.

￭ Each port hardware supports 8 priority queues.

￭ Support multiple queue scheduling algorithms such as SP, WRR or SP+WRR.

Rich business features

￭ Complete Layer 2 and Layer 3 multicast routing protocols to meet the access requirements of IPTV, multi-terminal high-definition video surveillance and high-definition video conferences;

￭ A complete three-layer routing protocol and large routing table capacity can meet the needs of various types of network interconnection, and can form a large campus network, enterprise network and industry user private network.

￭ It fully supports Layer 2 and Layer 3 MPLS VPN, and can build a super-large MPLS VPN core network to meet the access needs of industry private network VPN users and enterprise VPN users.

Comprehensive IPv6 solution

￭ Full support for IPv6 protocol suite, support for IPv6 features such as IPv6 neighbor discovery, ICMPv6, Path MTU discovery, etc.

￭ Supports Ping, Traceroute, Telnet, SSH, ACL, etc. based on IPv6 to meet the needs of pure IPv6 network equipment management and business control.

Perfect safety mechanism

￭ Device-level security protection: advanced hardware architecture design, hardware implements hierarchical scheduling and protection of packets, supports defense against DoS, TCP’s SYN Flood, UDP Flood, broadcast storm, heavy traffic and other attacks on the device; supports command line hierarchical Protection, users of different levels have different management rights;

￭ Complete security authentication mechanism: support IEEE 802.1x, Radius, BDTacacs+, etc., which can provide users with a complete security authentication mechanism.

￭ Support the suppression of broadcast, multicast and unknown unicast messages to ensure the normal operation of the device under harsh network conditions.

￭ The perfect loop detection mechanism can ensure the stable operation of the network for a long time.

￭ Provide port isolation in the same VLAN, and security features such as DHCP-Snooping, IP+MAC+ port binding, and further ensure user data security.

Flexible and convenient management and maintenance

￭ Support multiple management methods such as Console, Telnet, SSH, etc.

￭ It supports WEB management, which is simpler and more efficient, and is convenient for installation and commissioning by engineering and maintenance personnel.

￭ Support file upload and download management in TFTP mode.

￭ Support ISSU (In-Service Software Upgrade) business uninterrupted system upgrade.

￭ It supports the standard SNMP protocol, and cooperates with Barda’s « NMS » intelligent network management platform, which can realize automatic device discovery, network topology management, device configuration management, performance data statistical analysis, fault management and other functions, simplifying network management and providing users with Brand new experience.

Technical Parameters

project S5612

Exchange capacity 680Gbps/6.8Tbps

Packet forwarding rate 336Mpps

Port description 8 gigabit electrical ports

12 10 Gigabit optical ports

Chassis size 440×315×44 (mm)

power supply AC: 100V-240V, 50Hz±10%

Environmental requirements Working temperature/humidity: 0℃-50℃, 10%-90% non-condensing

Storage temperature/humidity: -20℃-70℃; 5%-95% non-condensing

Mac swap Support static configuration and dynamic learning of MAC address

Support view and clear MAC address

Configurable MAC address aging time

Support MAC address learning limit

Support MAC address filtering function

Support black hole MAC entries

Support IEEE 802.1AE MacSec security control

VLAN Support 4K VLAN table entries

Support GVRP

Support 1:1 and N:1 VLAN Mapping

Support basic QinQ functions

Support flexible QinQ function

Support Private VLAN

STP Support 802.1D (STP), 802.1W (RSTP), 802.1S (MSTP)

Support BPDU protection, root protection, loop protection

Multicast Support IGMP v1/v2/v3

Support IGMP Snooping

Support IGMP Fast Leave

Support multicast group policy and limit on the number of multicast groups

Supports cross-VLAN replication of multicast traffic

Support PIM-SM, PIM-DM

IPv4 Support static routing, RIP v1/v2, OSPF, BGP, IS-IS, BEIGRP

Support policy routing

Support equal cost routing to achieve load balancing

Support BFD for OSPF, BGP

IPv6 Support ICMPv6, DHCPv6, ACLv6, IPv6 Telnet

Support IPv6 neighbor discovery

Support Path MTU discovery

Support MLD v1/v2

Support MLD Snooping

Support IPv6 static routing, RIPng, OSPFv3, BGP4+

Support manual tunnel, ISATAP tunnel, 6to4 tunnel

MCE Support MCE function

MPLS VPN Support LDP protocol

Support MCE

P/PE function requirements to support MPLS VPN

Support MPLS TE

Support MPLS OAM

QoS Support traffic classification based on each field of the L2/L3/L4 protocol header

Support CAR flow limit

Support 802.1P/DSCP priority re-marking

Support queue scheduling methods such as SP, WRR, SP+WRR, etc.

Support congestion avoidance mechanisms such as Tail-Drop and WRED

Support traffic monitoring and traffic shaping

Supports Ingress and Egress ACLs, supports matching L2, L3, L4 and IP quintuples for copying, forwarding, and discarding

Support Hash homology and homology load balancing to ensure the session integrity of traffic output

Safety features Support L2/L3/L4 based ACL flow identification and filtering security mechanism

Support anti-DDoS attack, TCP SYN Flood attack, UDP Flood attack, etc.

Supports suppression of multicast, broadcast, and unknown unicast messages

Support port isolation

Support port security, IP+MAC+port binding

Support DHCP Snooping, DHCP Option 82

Support IEEE 802.1x authentication

Support Radius, BDTacacs+ certification

Support uRPF

Support command line hierarchical protection

reliability Optional support power 1+1 backup

Support static/LACP mode link aggregation, support link aggregation across business cards

Support EAPS, ERPS ring network protection

Support HSRP, VRRP hot backup protocol

Support GR for OSPF, BGP

Support BFD for OSPF, BGP

Support ISSU business uninterrupted system upgrade

Management and maintenance Support Console, Telnet, SSH 2.0

Support ZTP Zero Touch Provisioning (Zero Touch Provisioning)

Support browser-based WEB management

Support SNMP v1/v2/v3

Support file upload and download management in TFTP mode

Support RMON event history

Support sFLOW and other traffic statistics analysis
